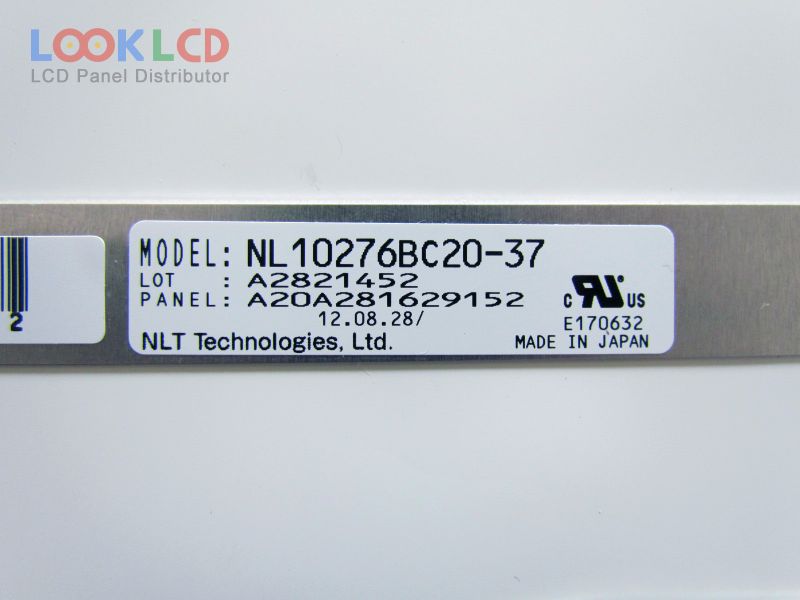

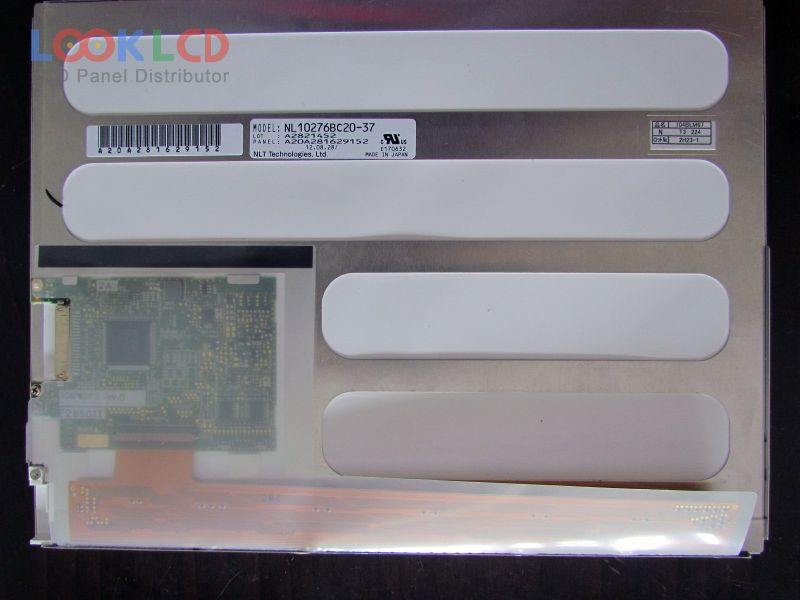

| PartNumber | NL10276BC20-37 |
| Marca | NLT |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 150 |
| CR | 400:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | NLT |
| model de panou | NL10276BC20-37 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 210.4×157.8 mm |
| contur | 231.2×174.6×5.8 mm |
| suprafaţă | Clear |
| luminozitatea | 150 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| timp de raspuns | 3/15 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/40/20 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit) |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
