N101ICG-L21 Rev.C1

N101ICG-L21 Rev.C1

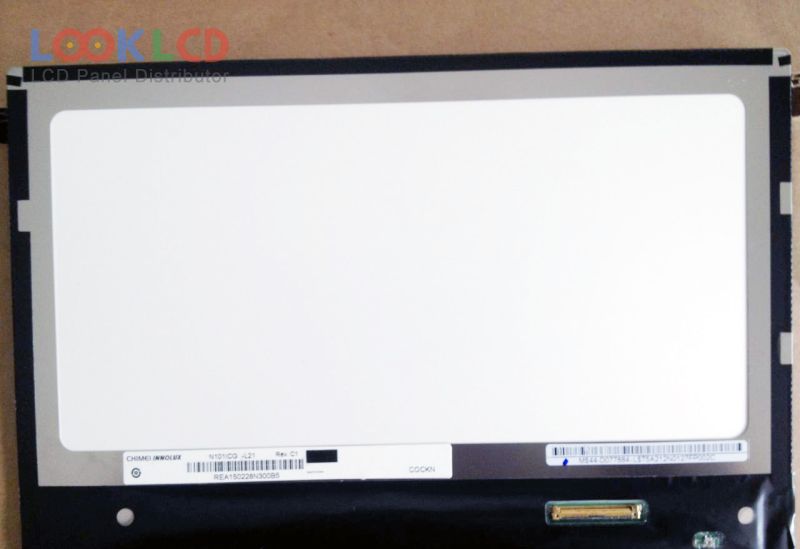

N101ICG-L21 Rev.C1 thumb
Marca
Innolux
mărimea
10.1
Aplicație
PAD
Rezoluţie
1280×800
Compoziţie
LCM
Luminozitate
350
CR
800:1
Culori
262K
Iluminare de fundal
WLED
Interfață
LVDS
In Stock
3180
Specificații

PartNumber N101ICG-L21 Rev.C1
MarcaInnolux
mărimea10.1
AplicațiePAD
Rezoluţie1280×800
CompoziţieLCM
Luminozitate350
CR800:1
Culori262K
Iluminare de fundalWLED
InterfațăLVDS
marca panouluiCMO
model de panouN101ICG-L21 Rev.C1 2 Compatible model
tip panou a-Si TFT-LCD , LCM
dimensiunea panoului10.1 inch
rezoluţie1280(RGB)×800 , WXGA
modul de afișareAAS, Normally Black, Transmissive
Zonă activă216.96×135.6 mm
contur227.42×147.69×4.85 mm
suprafaţăGlare (Haze 0%), Hard coating (3H)
luminozitatea350 cd/m² (Typ.)
Raport de contrast800:1 (Typ.)
culorile afișajului262K (6-bit), CIE193150%
timp de raspuns14/11 (Typ.)(Tr/Td)
unghi de vedere85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
frecvență60Hz
tip lampa3 stringsWLEDEmbedded (LED Driver)
interfață de semnalLVDS (1 ch, 6-bit), 40 pins
tensiune de intrare3.3V (Typ.)
aplicareaPAD
Model de familie
BP101WX1-210 BOE 10.1 1280×800
HSD101PWW1-B00 HannStar 10.1 1280×800
HSD101PWW1-F01 HannStar 10.1 1280×800
HSD101PWW1-G10 HannStar 10.1 1280×800
N101ICG-L11 Innolux 10.1 1280×800
N101ICG-L21 Rev.A1 Innolux 10.1 1280×800
N101ICG-L21 Rev.B1 Innolux 10.1 1280×800
N101ICG-L21 Rev.C1 Innolux 10.1 1280×800
N101ICG-L21 Rev.C2 Innolux 10.1 1280×800
VVX10F002A00 Panasonic 10.1 1920×1200
