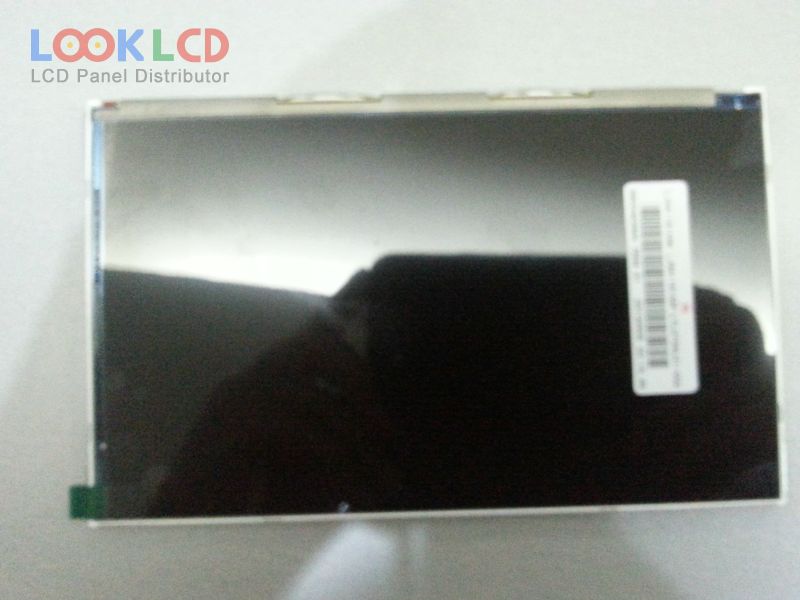

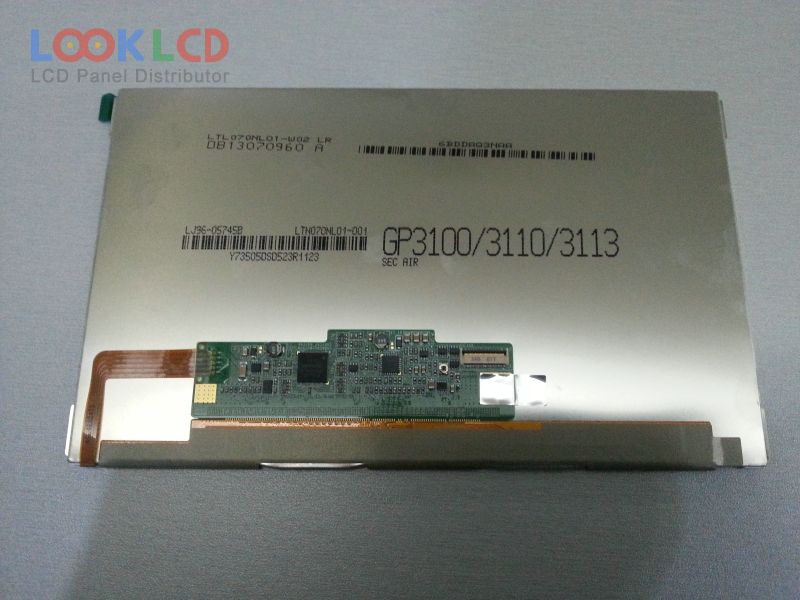

| PartNumber | LTL070NL01-002 |
| Marca | Samsung |
| mărimea | 7.0 |
| Aplicație | PAD |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 800:1 |
| Culori | 16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTL070NL01-002 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | PLS, Normally Black, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 164.05×99.96×4.37 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.2M (6-bit + FRC), CIE193150% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S4PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 8-bit), 31 pins |
| tensiune de intrare | 3.7V (Typ.) |
| aplicarea | PAD |
