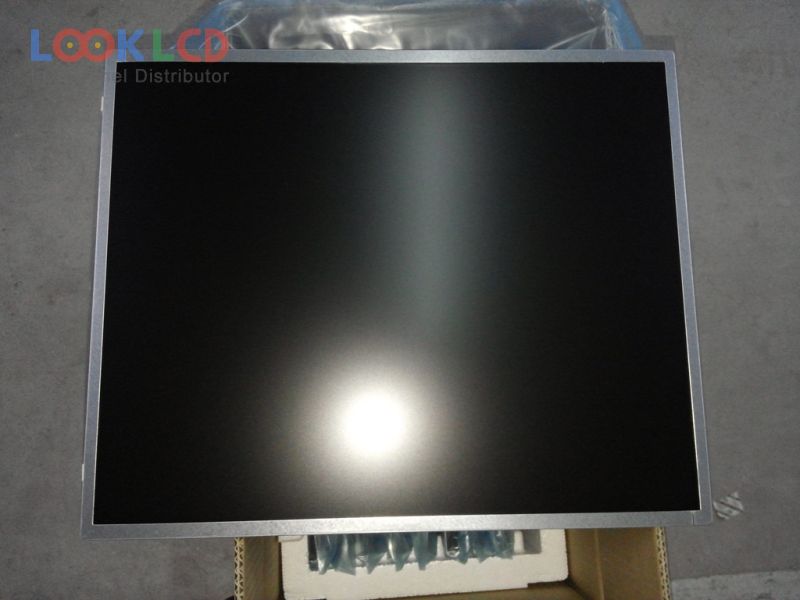

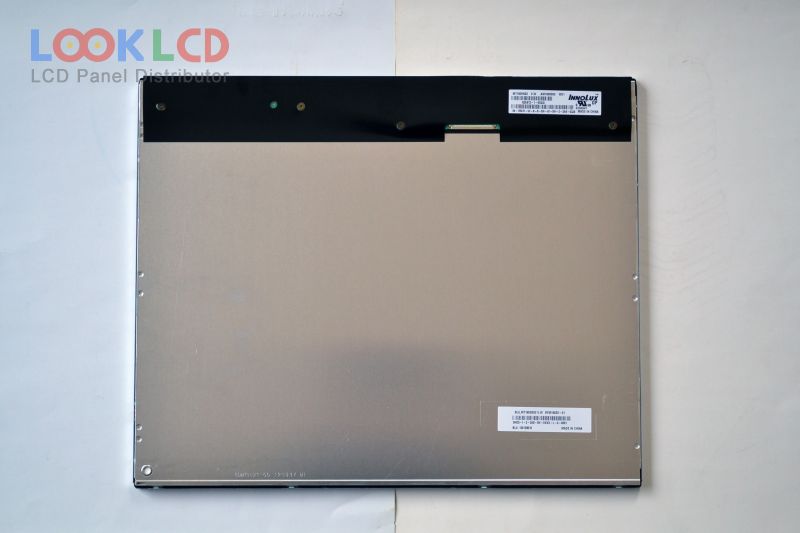

| PartNumber | MT190EN02 V.W |
| Marca | Innolux |
| mărimea | 19.0 |
| Aplicație | DMPC |
| Rezoluţie | 1280×1024 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | INNOLUX |
| model de panou | MT190EN02 V.W |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 19.0 inch |
| rezoluţie | 1280(RGB)×1024 , SXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 376.32×301.056 mm |
| contur | 396×324×11 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 1.5/3.5 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 10S12PWLEDWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| A190EN02 V0 | AUO | 19.0 | 1280×1024 |
| HSD190ME12-A10 | HannStar | 19.0 | 1280×1024 |
| HT190WG3-500 | BOE | 19.0 | 1440×900 |
| LM190E08-TLL3 | LG Display | 19.0 | 1280×1024 |
| M190EN01 V1 | AUO | 19.0 | 1280×1024 |
| M190PW01 V6 | AUO | 19.0 | 1440×900 |
| MT190AW02 V.W | Innolux | 19.0 | 1440×900 |
| MT190EN02 V.W | Innolux | 19.0 | 1280×1024 |
| MT190EN02 V.Y | Innolux | 19.0 | 1280×1024 |
| NL128102BM29-05A | NLT | 19.0 | 1280×1024 |
| LM170E03-TLB1 | LG Display | 17.0 | 1280×1024 |
| LM190WX2-TLK1 | LG Display | 19.0 | 1440×900 |
| LM201WE4-TLB2 | LG Display | 20.1 | 1680×1050 |
| LM215WF3-SDA1 | LG Display | 21.5 | 1920×1080 |
| LM230WF3-SLQ1 | LG Display | 23.0 | 1920×1080 |
| LQ315D1JG93 | SHARP | 31.5 | 3840×2160 |
| LTM213U3-L07 | Samsung | 21.3 | 1600×1200 |
| M170EG01 V5 | AUO | 17.0 | 1280×1024 |
| M190A1-L0G | Innolux | 19.0 | 1440×900 |
| M215HGJ-P02 | Innolux | 21.5 | 1920×1080 |
