Innolux MT190AW02 V.W fișă de date, specificație, stocuri, aplicație www.looklcd-ro.com
LookLCD LookLCD

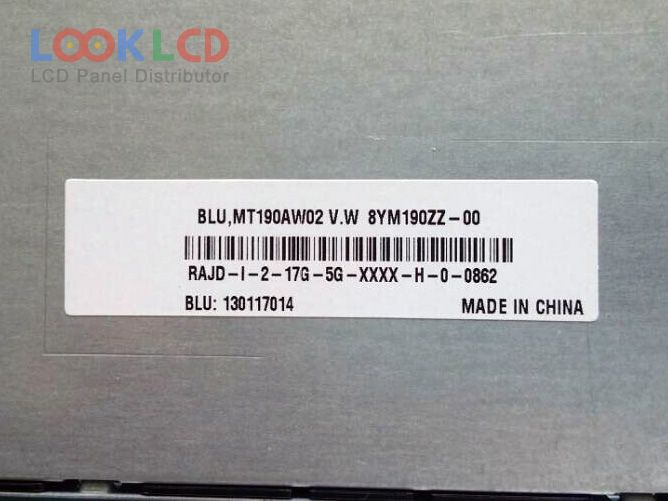

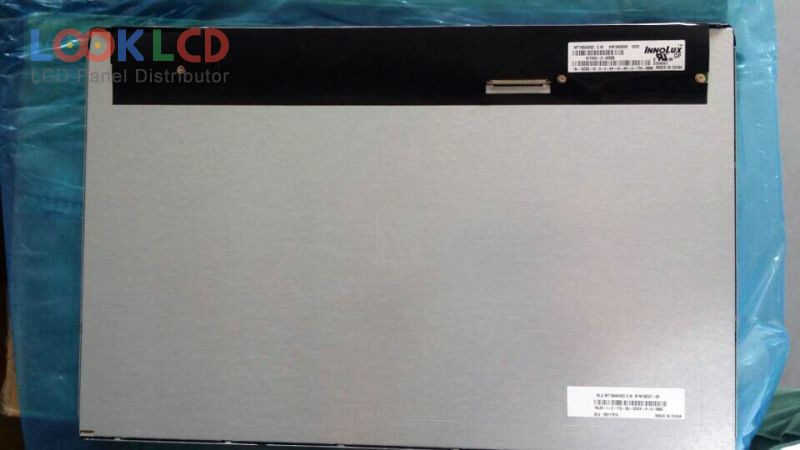

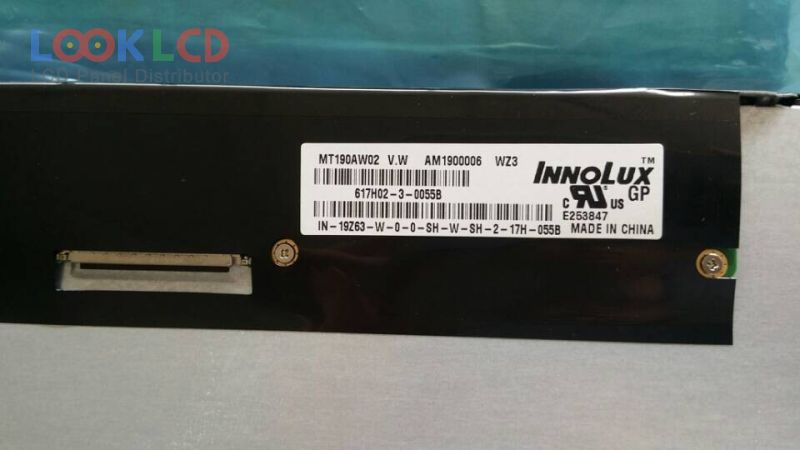

MT190AW02 V.W

MT190AW02 V.W
MT190AW02 V.W
MT190AW02 V.W
MT190AW02 V.W thumb MT190AW02 V.W thumb MT190AW02 V.W thumb
Marca
Innolux
mărimea
19.0
Aplicație
DMPC
Rezoluţie
1440×900
Compoziţie
LCM
Luminozitate
250
CR
1000:1
Culori
16.7M
Iluminare de fundal
WLED
Interfață
LVDS
In Stock
225
Specificații

PartNumber MT190AW02 V.W
MarcaInnolux
mărimea19.0
AplicațieDMPC
Rezoluţie1440×900
CompoziţieLCM
Luminozitate250
CR1000:1
Culori16.7M
Iluminare de fundalWLED
InterfațăLVDS
marca panouluiINNOLUX
model de panouMT190AW02 V.W
tip panou a-Si TFT-LCD , LCM
dimensiunea panoului19.0 inch
rezoluţie1440(RGB)×900 , WXGA+
modul de afișareTN, Normally White, Transmissive
Zonă activă408.24×255.15 mm
contur428×278 mm
suprafaţăAntiglare (Haze 25%), Hard coating (3H)
luminozitatea250 cd/m² (Typ.)
Raport de contrast1000:1 (Typ.)
culorile afișajului16.7M (6-bit + Hi-FRC), CIE193168%
timp de raspuns1.5/3.5 (Typ.)(Tr/Td)
unghi de vedere85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
frecvență60Hz
tip lampa5 stringsWLEDWithout Driver
interfață de semnalLVDS (2 ch, 8-bit), 30 pins
tensiune de intrare5.0V (Typ.)
aplicareaDMPC
Model de familie
HSD190MEN4-A03 HannStar 19.0 1280×1024
MT190AW01 V.5 Innolux 19.0 1440×900
MT190AW01 V.7 Innolux 19.0 1440×900
MT190AW01 V.C Innolux 19.0 1440×900
MT190AW02 V.0 Innolux 19.0 1440×900
MT190AW02 V.4 Innolux 19.0 1440×900
MT190AW02 V.A Innolux 19.0 1440×900
MT190AW02 V.V Innolux 19.0 1440×900
MT190AW02 V.W Innolux 19.0 1440×900
MT190AW02 V.Y Innolux 19.0 1440×900
