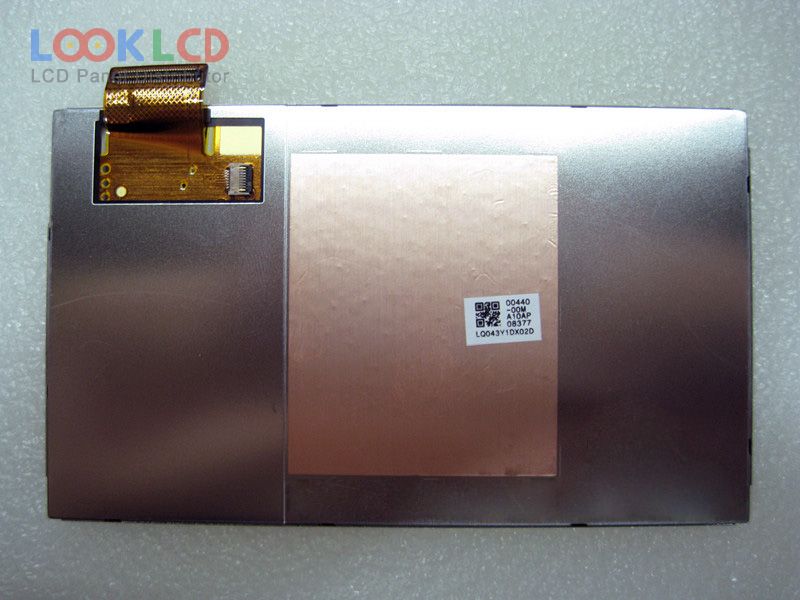

| PartNumber | LQ043Y1DX02 |
| Marca | SHARP |
| mărimea | 4.3 |
| Aplicație | MPH |
| Rezoluţie | 480×800 |
| Compoziţie | LCM |
| Luminozitate | 340 |
| CR | 900:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ043Y1DX02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 4.3 inch |
| rezoluţie | 480(RGB)×800 , WVGA |
| modul de afișare | ASV, Normally Black, Transmissive |
| Zonă activă | 56.16×93.6 mm |
| contur | 62.46×105.9×2.3 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 340 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 35 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| tensiune de intrare | 3.3/2.6V (Typ.)(VCI/VDDIO) |
| aplicarea | MPH |
