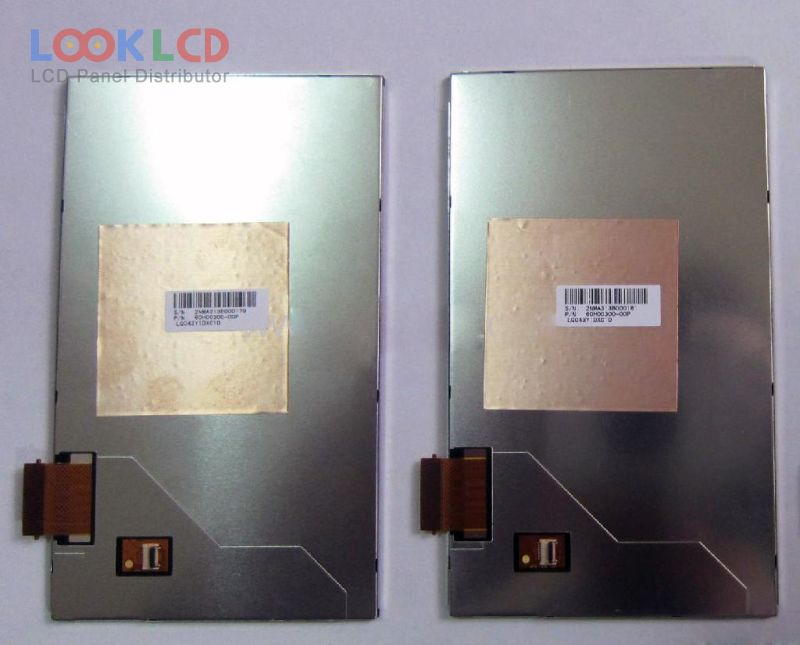

| PartNumber | LQ043Y1DX01D |
| Marca | SHARP |
| mărimea | 4.3 |
| Aplicație | MPH |
| Rezoluţie | 480×800 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 900:1 |
| Culori | 65K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ043Y1DX01D 3 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 4.3 inch |
| rezoluţie | 480(RGB)×800 , WVGA |
| modul de afișare | ASV, Normally Black, Transmissive |
| Zonă activă | 56.16×93.6 mm |
| contur | 62.46×105.9 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 65K , CIE193172% |
| timp de raspuns | 35 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB, 45 pins |
| tensiune de intrare | 3.0/2.6V (Typ.)(VCI/VDDIO) |
| aplicarea | MPH |
| C043FW01 V0 | AUO | 4.3 | 480×234 |
| ED043CA-01D | Innolux | 4.3 | 480×272 |
| LMS430HF11-003 | Samsung | 4.3 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01 | SHARP | 4.3 | 480×800 |
| LQ043Y1DX01B | SHARP | 4.3 | 480×800 |
| LQ043Y1DX01D | SHARP | 4.3 | 480×800 |
| LQ043Y1DX02 | SHARP | 4.3 | 480×800 |
| LQ043Y1DX03D | SHARP | 4.3 | 480×800 |
| AMS395GB02 | Samsung | 4.0 | 360×640 |
| EJ030NC-02A | Innolux | 3.0 | |
| H466TAN02.4 | AUO | 4.7 | 720×1280 |
| H497DAN01.0 | AUO | 5.0 | 1080×1920 |
| LH350H02-FD02 | LG Display | 3.5 | 320×480 |
| LH400WV3-SD02 | LG Display | 4.0 | 480×800 |
| LH430WV1-SD01 | LG Display | 4.3 | 480×800 |
| LM18WGSBZ05 | SHARP | 1.8 | 120×160 |
| LS055R1SX03 | SHARP | 5.5 | 1440×2560 |
| TM045XDZP08 | Tianma | 4.5 | 540×960 |
