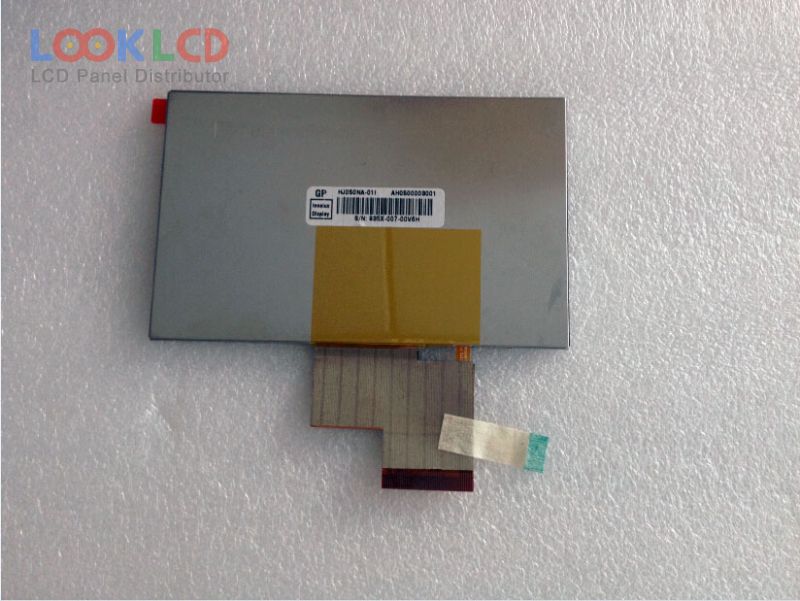

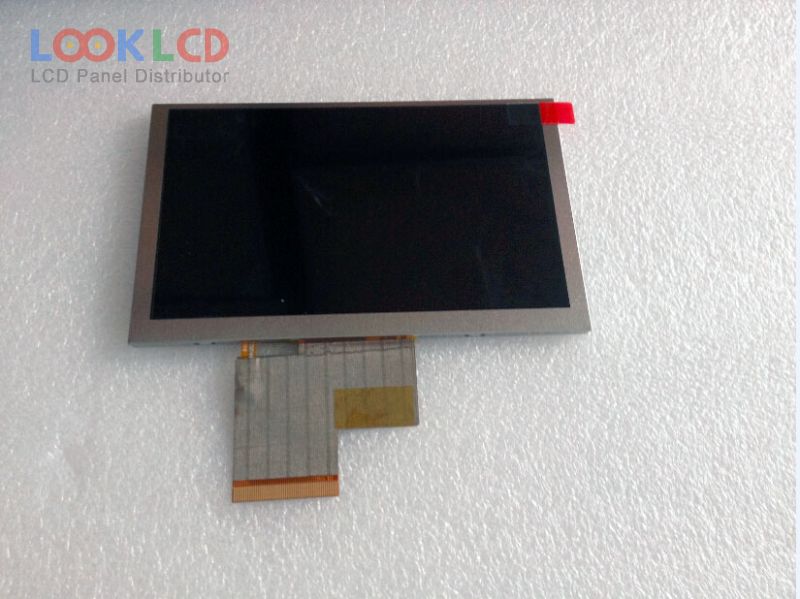

| PartNumber | HJ050NA-01I |
| Marca | Innolux |
| mărimea | 5.0 |
| Aplicație | MPH |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 500:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | CHIMEI INNOLUX |
| model de panou | HJ050NA-01I |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 108×64.8 mm |
| contur | 120.7×76.3×3.3 mm |
| suprafaţă | Antiglare |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 8-bit) |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 50 pins |
| tensiune de intrare | 3.3/10/16.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | MPH |
| CLAA050JA01CT | CPT | 5.0 | 480×272 |
| CLAN050LH21 1XB | CPT | 5.0 | 540×960 |
| HJ050NA-01I | Innolux | 5.0 | 800×480 |
| HSD050I9W1-A00 | HannStar | 5.0 | 480×272 |
| LA050WQ2-SD02 | LG Display | 5.0 | 480×240 |
| LMS500HF04-002 | Samsung | 5.0 | 480×272 |
| LQ050W1LA0A | SHARP | 5.0 | 1024×600 |
| PD050SX2 | E Ink | 5.0 | 800×600 |
| PJ050IA-14A | Innolux | 5.0 | 720×1280 |
| YXDK050TN02-40NM03 | SEBO | 5.0 | 800×480 |
| CT024TN04 V.F | Innolux | 2.4 | 240×320 |
| H020HD01 V0 | AUO | 2.0 | 176×220 |
| H466TAN01.0 | AUO | 4.7 | 720×1280 |
| LH450WX3-SD01 | LG Display | 4.5 | 720×1280 |
| LH467WX1-SD01 | LG Display | 4.7 | 768×1280 |
| LM18WGSBZ05 | SHARP | 1.8 | 120×160 |
| LS038Y3LX01 | SHARP | 3.8 | 480×800 |
| LS038Y7DX01 | SHARP | 3.8 | 480×800 |
| LTM024P339 | TOSHIBA | 2.4 | 240×320 |
| TM024HDH36 | Tianma | 2.4 | 240×320 |
