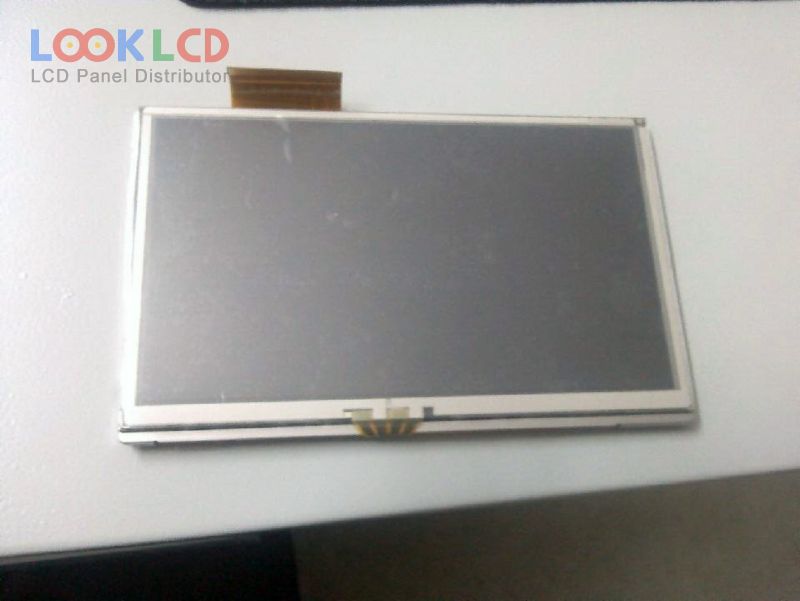

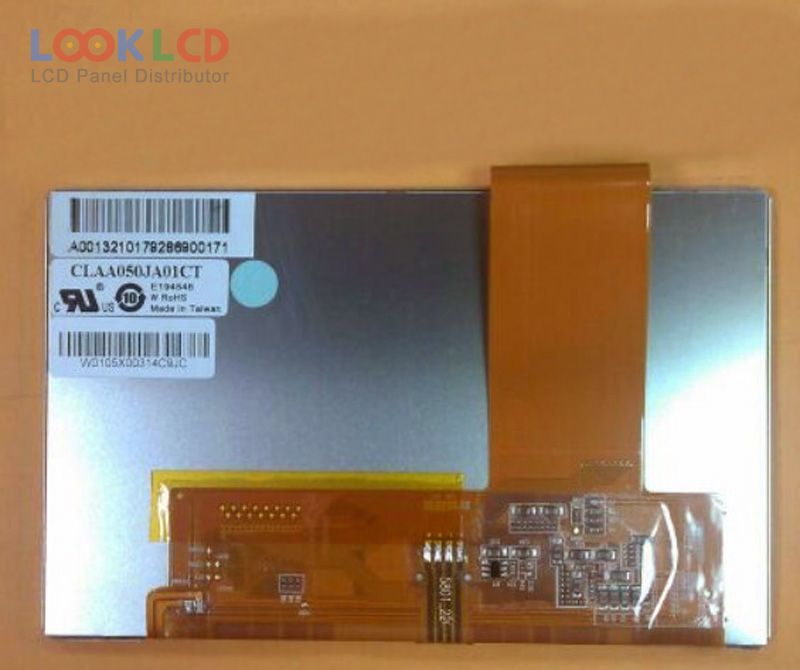

| PartNumber | CLAA050JA01CT |
| Marca | CPT |
| mărimea | 5.0 |
| Aplicație | CNS |
| Rezoluţie | 480×272 |
| Compoziţie | LCM |
| Luminozitate | 320 |
| CR | 350:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | CPT |
| model de panou | CLAA050JA01CT |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 480(RGB)×272 , WQVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 110.88×62.832 mm |
| contur | 120.7×75.8×4.5 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 320 cd/m² (Typ.) |
| Raport de contrast | 350:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 10S1PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 8-bit), 50 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | CNS |
