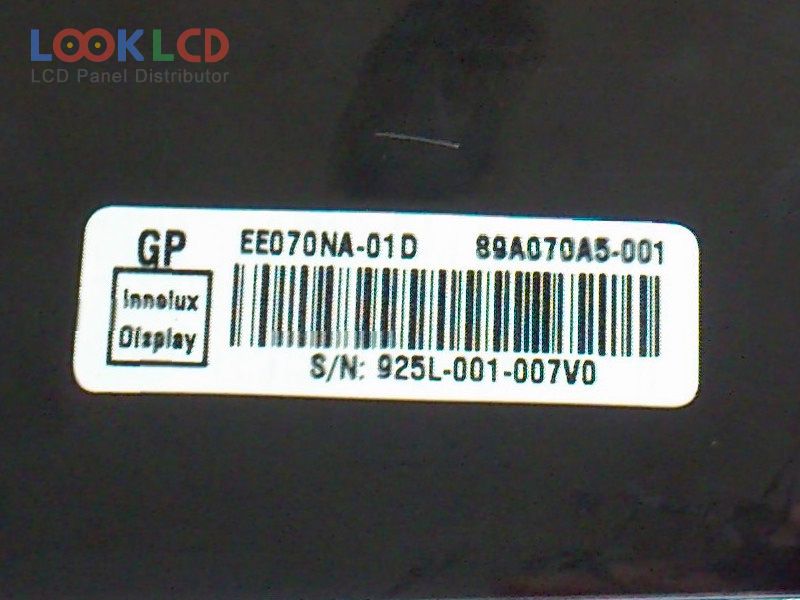

| PartNumber | EE070NA-01D |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | MP4 |
| Rezoluţie | 1024×600 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 700:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | No B/L |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | EE070NA-01D |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 160×101.1×1.43 mm |
| suprafaţă | Glare (Haze 0%), Hard coating |
| adâncimea sticlei | 0.50+0.50 mm |
| transmisivitatea | 3.5% (Typ.)(with Polarizer) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensiune de intrare | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | MP4 |
