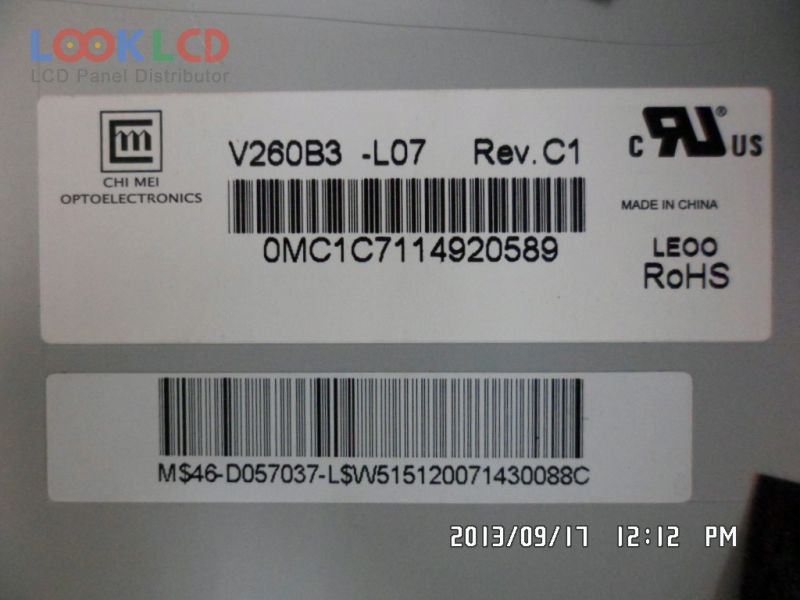

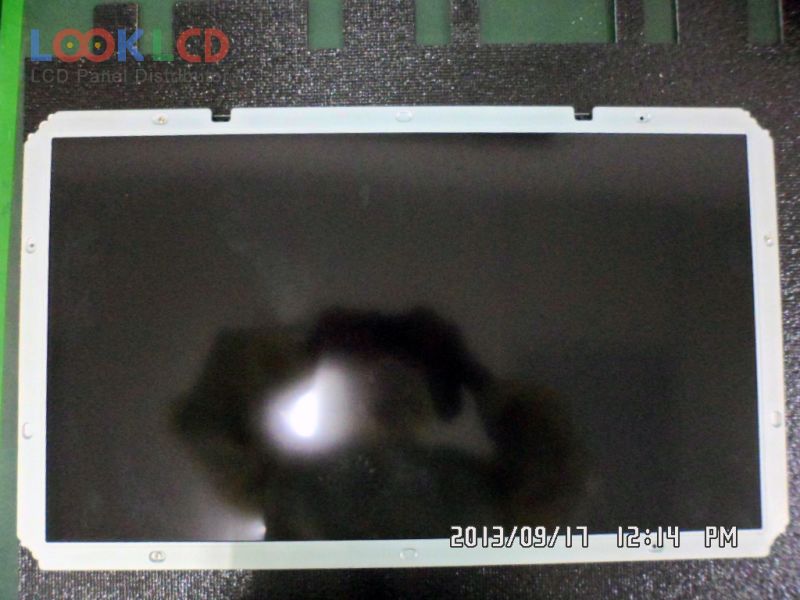

| PartNumber | V260B3-L07 |
| Marca | Innolux |
| mărimea | 26.0 |
| Aplicație | LCTV |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 3000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | V260B3-L07 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 26.0 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | MVA, Normally Black, Transmissive |
| Zonă activă | 575.769×323.712 mm |
| contur | 626×373 mm |
| suprafaţă | Antiglare (Haze 11%), Hard coating (3H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 3000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 8.5 (Typ.)(G to G) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLEmbedded (Inverter) |

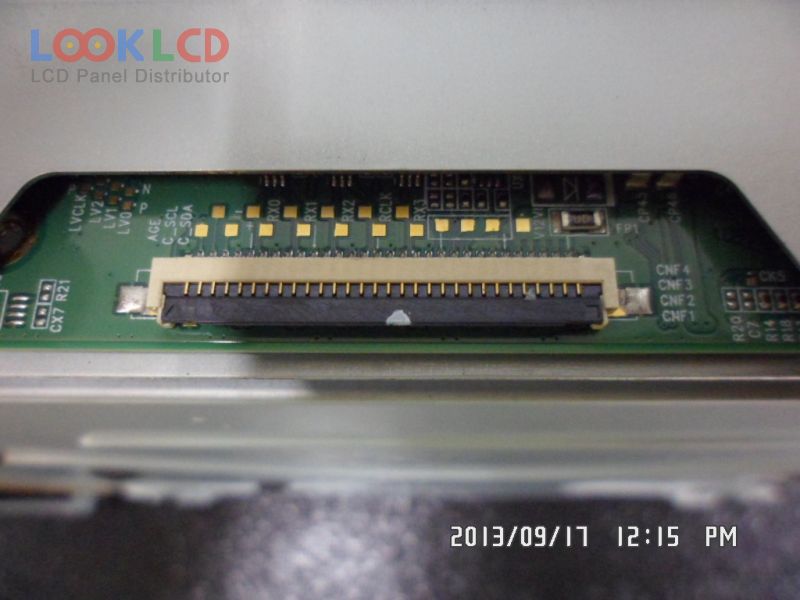

| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
