| PartNumber | V260B1-L02 |
| Marca | Innolux |
| mărimea | 26.0 |
| Aplicație | LCTV |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 800:1 |
| Culori | 16.2M |
| Iluminare de fundal | CCFL |
| Interfață | RSDS |
| marca panoului | CMO |
| model de panou | V260B1-L02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 26.0 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 575.769×323.712 mm |
| contur | 626×373 mm |
| suprafaţă | |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.2M (6-bit + FRC), CIE193172% |
| timp de raspuns | 3/5 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |

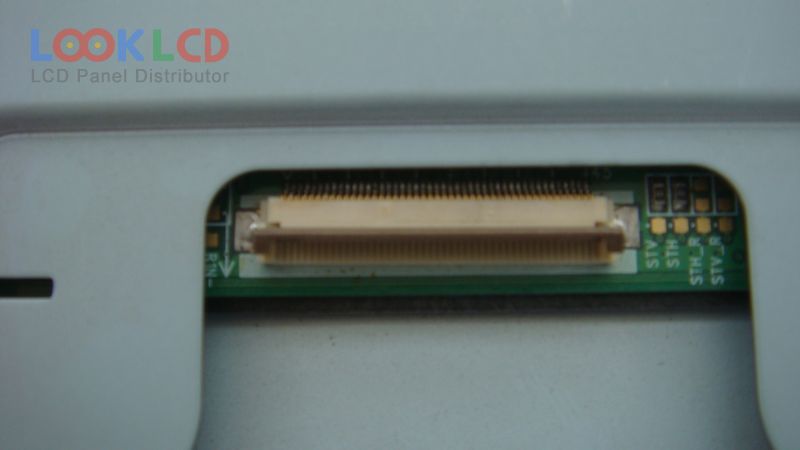

| interfață de semnal | RSDS (1 Channel), 45 pins |
| tensiune de intrare | 5.3.3/5.0V (Typ.)(VDD/VIN5) |
| aplicarea | LCTV |
