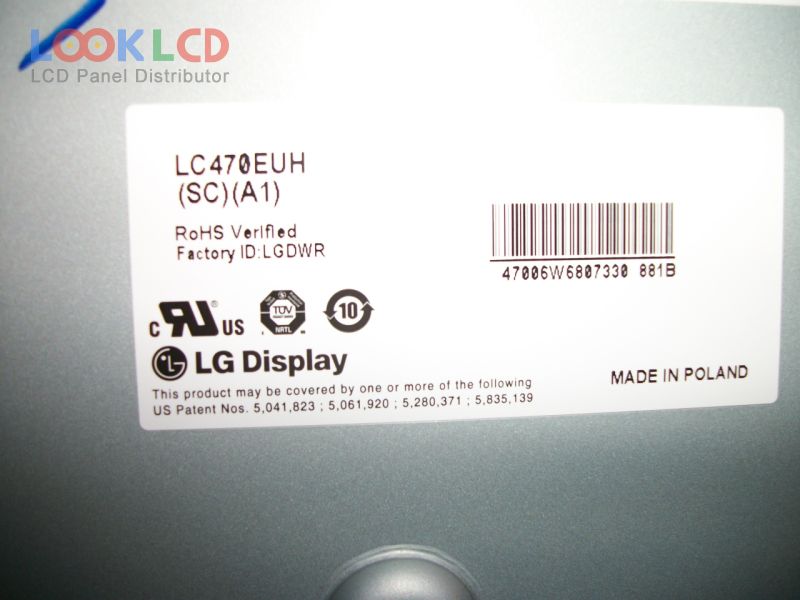

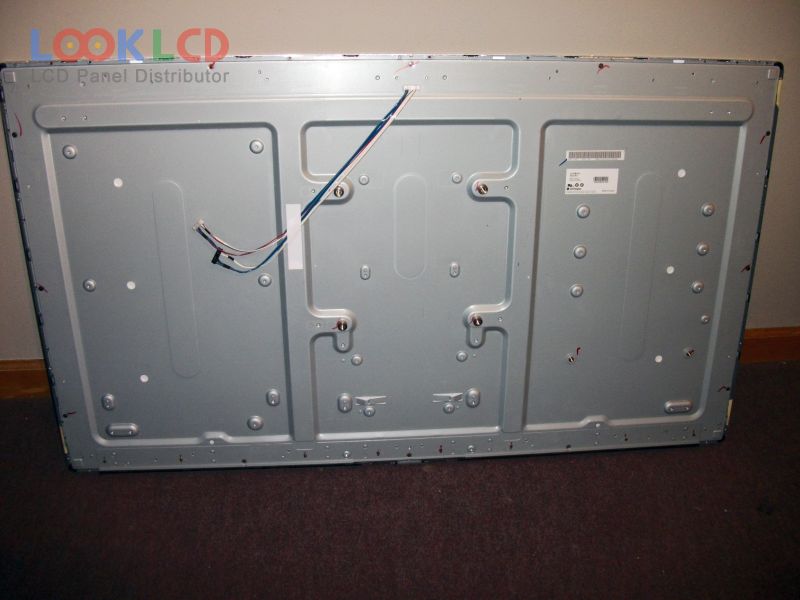

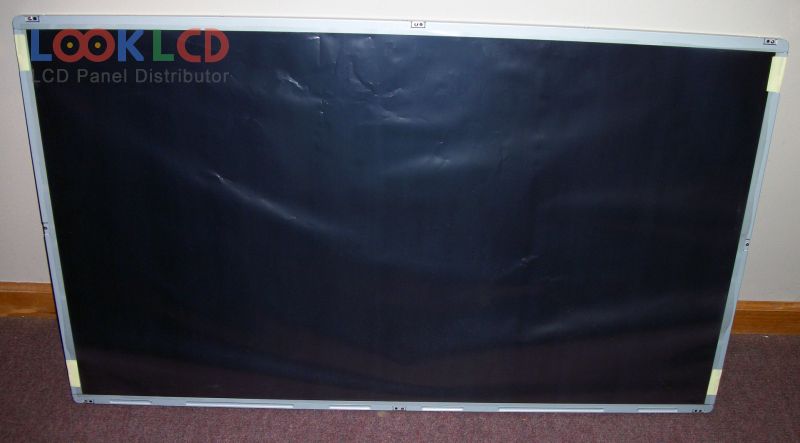

| PartNumber | LC470EUH-SCA1 |
| Marca | LG Display |
| mărimea | 47 |
| Aplicație | LCTV |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 1400:1 |
| Culori | 1.07B |
| Iluminare de fundal | WLED |
| Interfață | Mini LVDS |
| marca panoului | LG Display |
| model de panou | LC470EUH-SCA1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 47 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | S-IPS, Normally Black, Transmissive |
| Zonă activă | 1039.68×584.82 mm |
| contur | 1083.6×628.8×26.3 mm |
| suprafaţă | Antiglare (Haze 10%), Hard coating (3H) |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 1400:1 (Typ.) |
| culorile afișajului | 1.07B (8-bit + Dithering), CIE193172% |
| timp de raspuns | 8/10 (Typ.)(Tr/Td) |
| unghi de vedere | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frecvență | 120Hz |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | Mini LVDS, 120 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | LCTV |
| LC470EUD-SDF1 | LG Display | 47 | 1920×1080 |
| LC470EUE-SEM1 | LG Display | 47 | 1920×1080 |
| LC470EUE-SEM2 | LG Display | 47 | 1920×1080 |
| LC470EUF-FFP1 | LG Display | 47 | 1920×1080 |
| LC470EUF-PFF1 | LG Display | 47 | 1920×1080 |
| LC470EUF-PGF1 | LG Display | 47 | 1920×1080 |
| LC470EUF-SDA1 | LG Display | 47 | 1920×1080 |
| LC470EUG-PFF1 | LG Display | 47 | 1920×1080 |
| LC470EUH-SCA1 | LG Display | 47 | 1920×1080 |
| LC470EUN-SEF1 | LG Display | 47 | 1920×1080 |
| BOEV320WX1 | BOE | 31.5 | 1366×768 |
| LC370WUN-SCA1 | LG Display | 37 | 1920×1080 |
| LC550EUN-SFM2 | LG Display | 55 | 1920×1080 |
| LTA400HM02 | Samsung | 40 | 1920×1080 |
| LTY400HF06 | Samsung | 40 | 1920×1080 |
| T370HW02 V5 | AUO | 37 | 1920×1080 |
| V420HK1-LS5 Rev.C7 | Innolux | 42 | 1920×1080 |
| V500HJ1-LE1 | Innolux | 50 | 1920×1080 |
| V580DK1-KS2 | Innolux | 58 | 3840×2160 |
| V650HP1-ME2 | Innolux | 65 | 1920×1080 |
