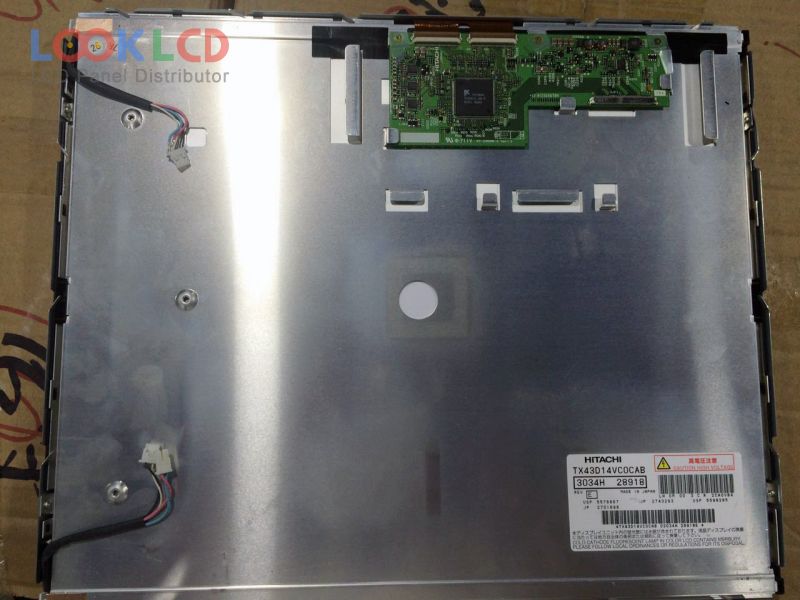

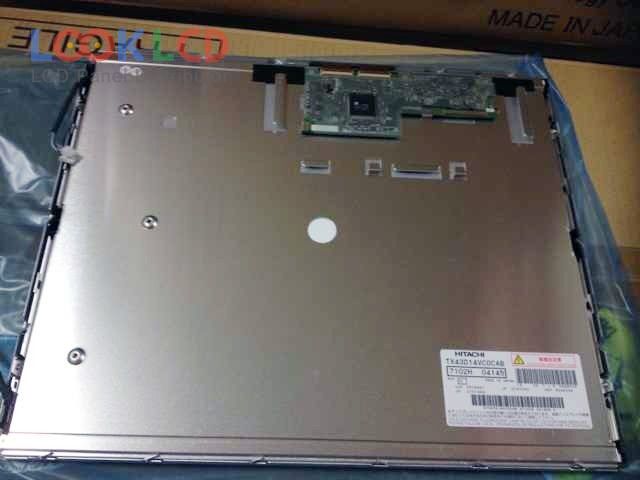

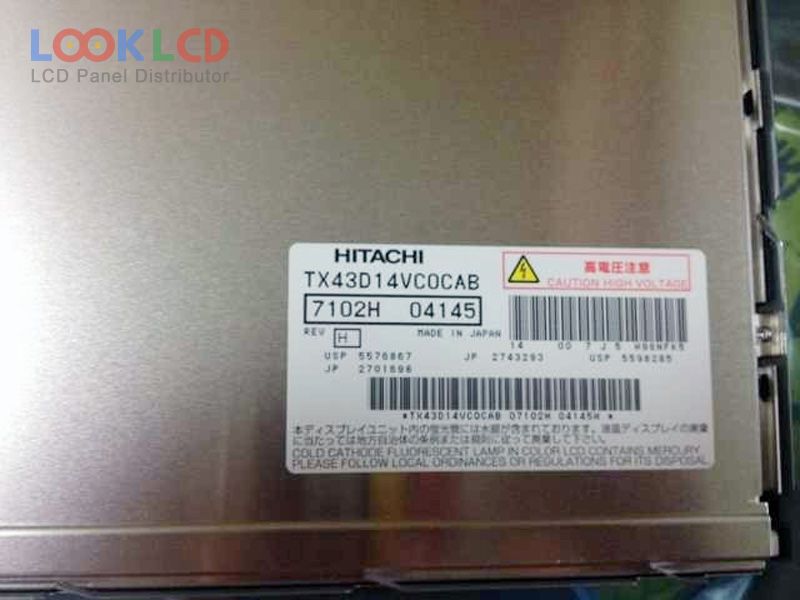

| PartNumber | TX43D14VC0CAB |
| Marca | KOE |
| mărimea | 17.0 |
| Aplicație | DMPC |
| Rezoluţie | 1280×1024 |
| Compoziţie | LCM |
| Luminozitate | 230 |
| CR | 400:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | HITACHI |
| model de panou | TX43D14VC0CAB |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 17.0 inch |
| rezoluţie | 1280(RGB)×1024 , SXGA |
| modul de afișare | IPS-Pro, Normally Black, Transmissive |
| Zonă activă | 337.92×270.336 mm |
| contur | 368×306 mm |
| suprafaţă | Antiglare |
| luminozitatea | 230 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC) |
| timp de raspuns | 20/20 (Typ.)(Tr/Td) |
| unghi de vedere | |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
