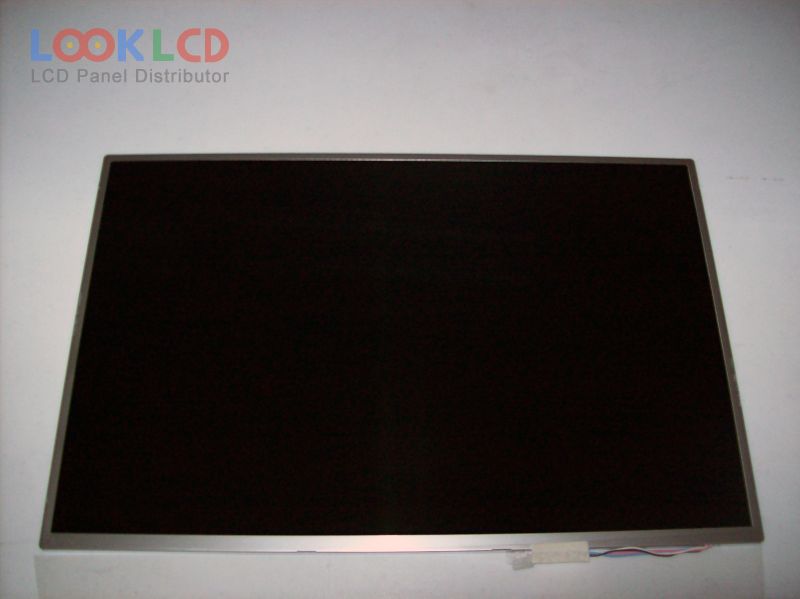

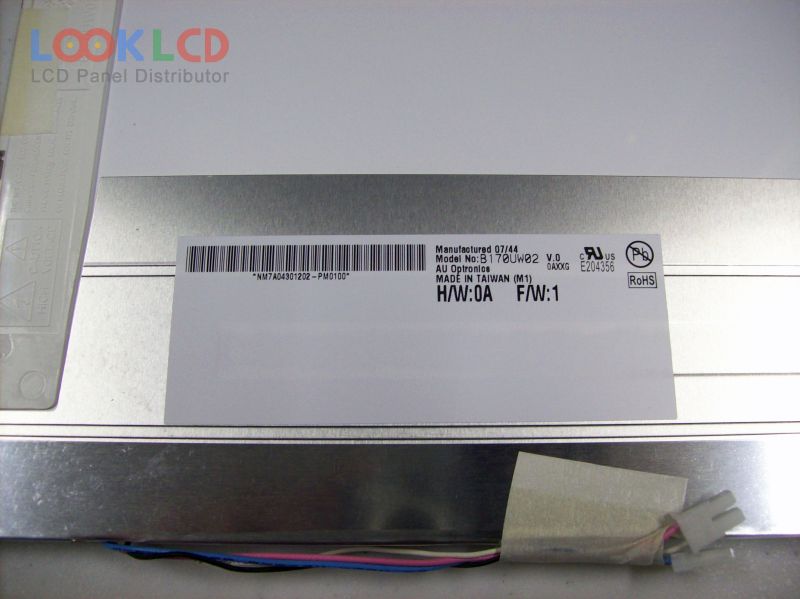

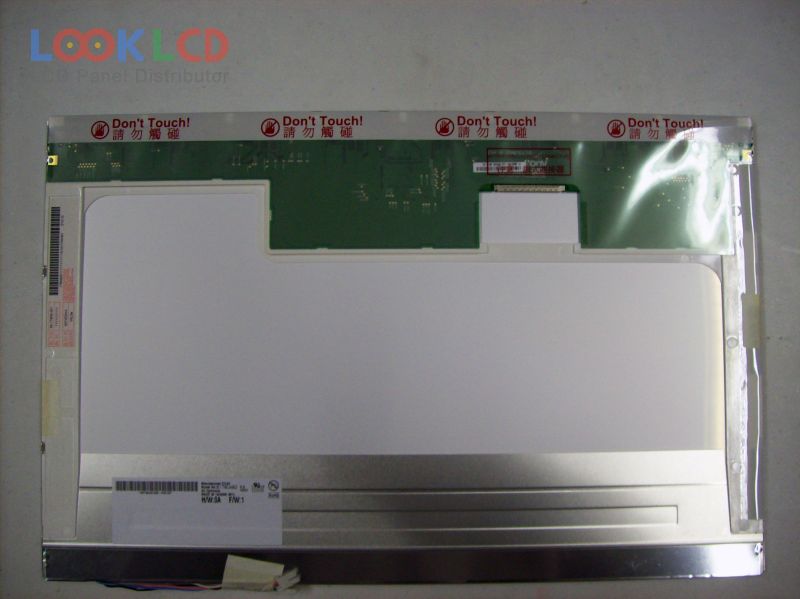

| PartNumber | B170UW02 V0 |
| Marca | AUO |
| mărimea | 17.0 |
| Aplicație | NBPC |
| Rezoluţie | 1920×1200 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | AUO |
| model de panou | B170UW02 V0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 17.0 inch |
| rezoluţie | 1920(RGB)×1200 , WUXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 367.2×229.5 mm |
| contur | 382.2×247.5×7 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (4H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193172% |
| timp de raspuns | 8 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFL |
| interfață de semnal | LVDS (2 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
