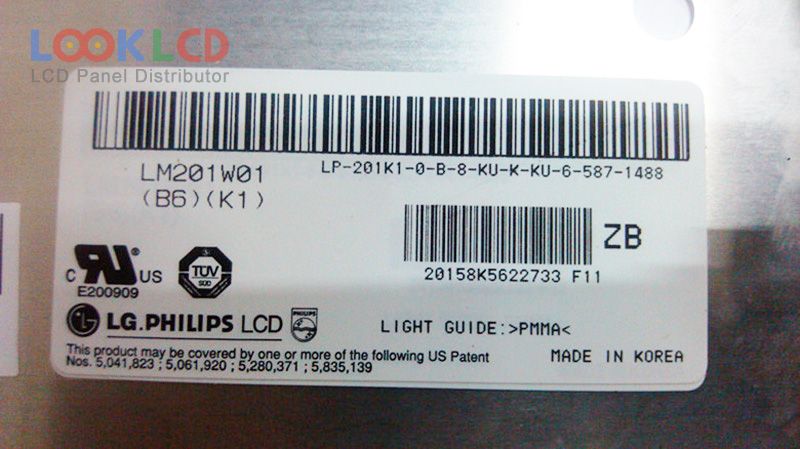

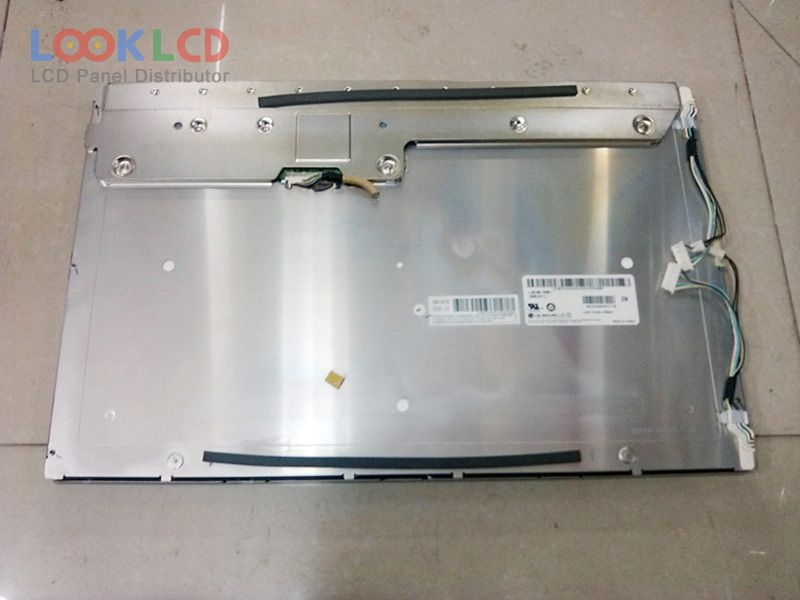

| PartNumber | LM201W01-B6K1 |
| Marca | LG Display |
| mărimea | 20.1 |
| Aplicație | DMPC |
| Rezoluţie | 1680×1050 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 600:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | LG.Philips LCD |
| model de panou | LM201W01-B6K1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 20.1 inch |
| rezoluţie | 1680(RGB)×1050 , WSXGA+ |
| modul de afișare | S-IPS, Normally Black, Transmissive |
| Zonă activă | 433.44×270.9 mm |
| contur | 459.4×296.4 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 7/9 (Typ.)(Tr/Td); 12 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | DMPC |
