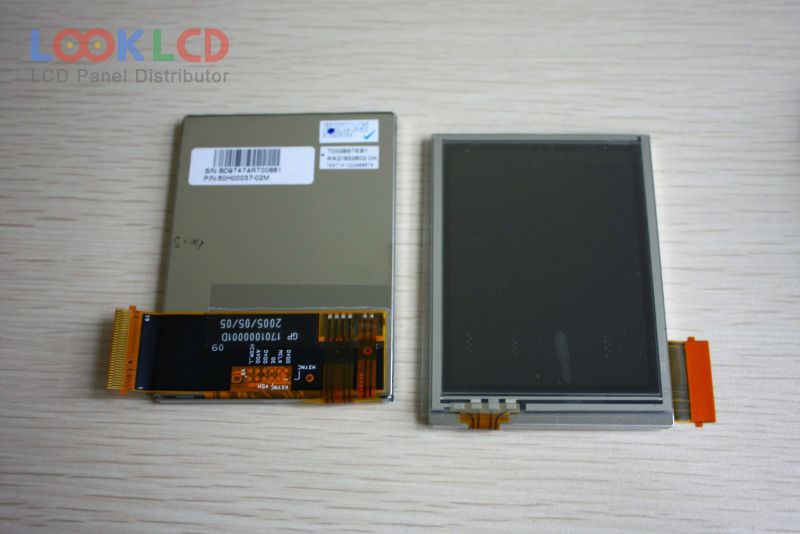

| PartNumber | TD028STEB1 |
| Marca | TPO |
| mărimea | 2.8 |
| Aplicație | MPH |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 150 |
| CR | 150:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | Toppoly |
| model de panou | TD028STEB1 |
| tip panou | LTPS TFT-LCD , LCM |
| dimensiunea panoului | 2.8 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 43.2×57.6 mm |
| contur | 52.9×71.7 mm |
| suprafaţă | |
| luminozitatea | 150 cd/m² (Typ.) |
| Raport de contrast | 150:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 33 (Typ.)(Tr+Td) |
| unghi de vedere | 40/45/60/35 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 4S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 61 pins |
| tensiune de intrare | 2.8/5.0/10/-5V (Typ.)(DVDD/AVDD/VGH/VVEE) |
| aplicarea | MPH |
| 28QVF1H | SII | 2.8 | 240×320 |
| 28QVF1J | SII | 2.8 | 240×320 |
| BTL282440-310L | BOE | 2.8 | 240×400 |
| C0283QGLD-T | CMEL | 2.8 | 240×320 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8 | 128×64 |
| LTE283QV-F01 | Samsung | 2.8 | 320×240 |
| TD028STEB1 | TPO | 2.8 | 240×320 |
| TD028STEB2 | TPO | 2.8 | 240×320 |
| TFT240320-237-E | Other | 2.8 | 240×320 |
| TM028HBHG02 | Tianma | 2.8 | 240×320 |
| BT055FWM-N00 | BOE | 5.5 | 480×854 |
| HSD060FMW1-C00 | HannStar | 6.0 | 540×960 |
| LH350WS1-SD01 | LG Display | 3.5 | 640×960 |
| LH350WS1-SH02 | LG Display | 3.5 | 640×960 |
| LH500X01-SD01 | LG Display | 5.0 | 768×1024 |
| LH550WF4-SJ11 | LG Display | 5.5 | 1080×1920 |
| LMS245DC08 | Samsung | 2.4 | 480×360 |
| LQ043T1LX01A | SHARP | 4.3 | 540×960 |
| LTM020A52A | TOSHIBA | 2.0 | 240×320 |
| OEL9M0039-Y-E | Other | 1.5 | 128×128 |
