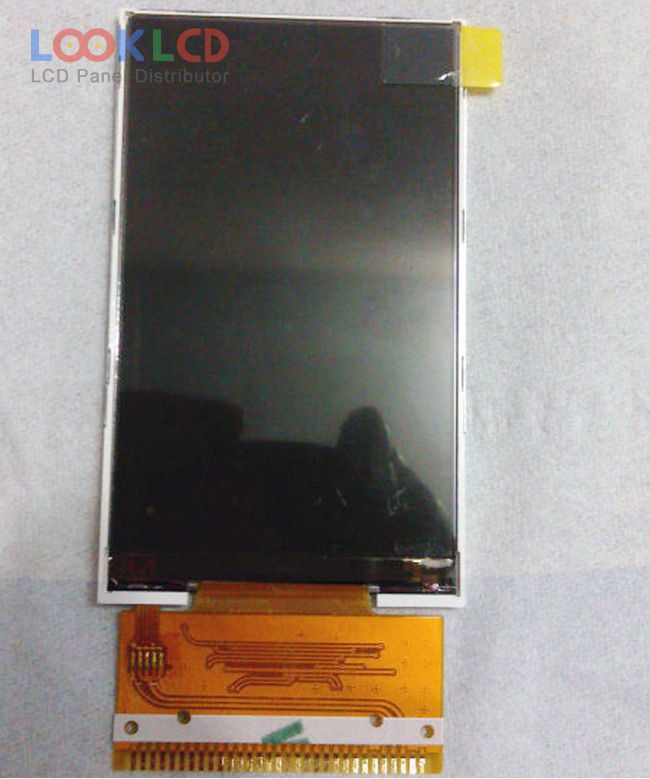

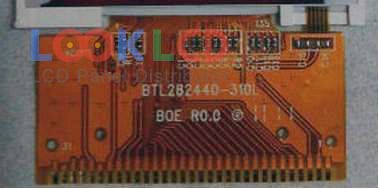

| PartNumber | BTL282440-310L |
| Marca | BOE |
| mărimea | 2.8 |
| Aplicație | MPH |
| Rezoluţie | 240×400 |
| Compoziţie | LCM |
| Luminozitate | 190 |
| CR | 240:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | CPU |
| marca panoului | BOE |
| model de panou | BTL282440-310L |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 2.8 inch |
| rezoluţie | 240(RGB)×400 , WQVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 36.72×61.2 mm |
| contur | 42.5×71.4 mm |
| suprafaţă | Clear |
| luminozitatea | 190 cd/m² (Typ.) |
| Raport de contrast | 240:1 (Typ.) |
| culorile afișajului | 262K |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 55/55/60/30 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1S4PWLEDWithout Driver |
| interfață de semnal | CPU, 31 pins |
| tensiune de intrare | 2.8/2.8V (Typ.)(IOVCC/VCC) |
| aplicarea | MPH |
