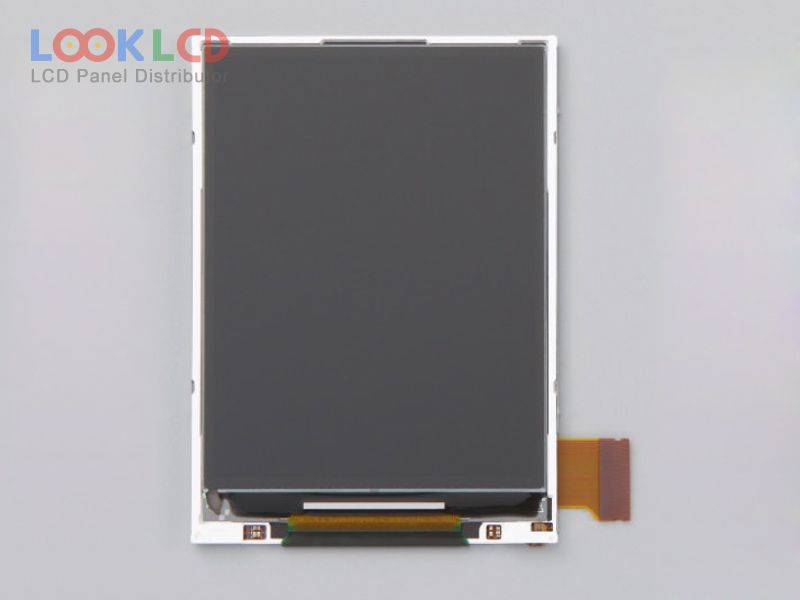

| PartNumber | 28QVF2H |
| Marca | SII |
| mărimea | 2.8 |
| Aplicație | HHP |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 800:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SII |
| model de panou | 28QVF2H |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 2.8 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | FFS, Normally Black, Transmissive |
| Zonă activă | 43.2×57.6 mm |
| contur | 49×69 mm |
| suprafaţă | Clear, Hard coating |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193172% |
| timp de raspuns | 35 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 4S1PWLED |
| interfață de semnal | Parallel RGB (1 ch, 6-bit) + SPI, 35 pins |
| tensiune de intrare | (1.65~3.3)/(2.5~3.3)(IOVCC/VCI) |
| aplicarea | HHP |
