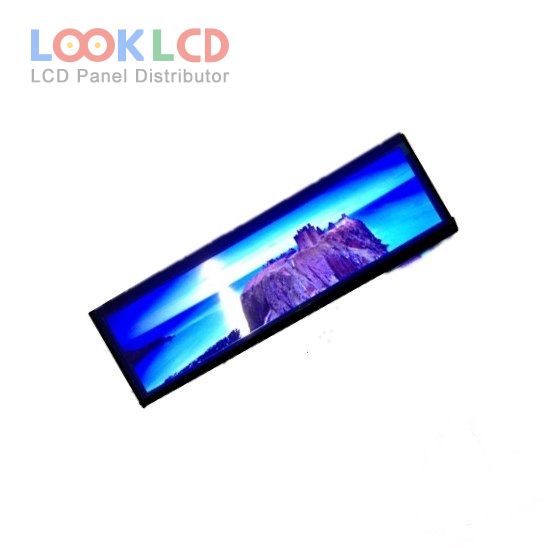

| PartNumber | S088WX03 |
| Marca | CDTECH |
| mărimea | 8.8 |
| Aplicație | IA |
| Rezoluţie | 1280×320 |
| Compoziţie | LCM |
| Luminozitate | 600 |
| CR | 700:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CDTECH |
| model de panou | S088WX03 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 8.8 inch(2/5 cut of 10.1") |
| rezoluţie | 1280(RGB)×320 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 216.96×54.24 mm |
| contur | 229.66×67.5×6.2 mm |
| suprafaţă | |
| luminozitatea | 600 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193162% |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4S9PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | IA |
