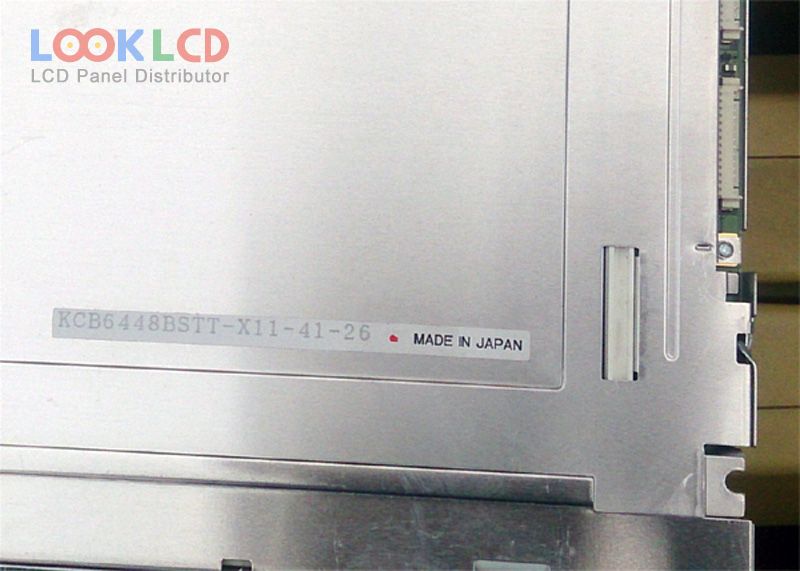

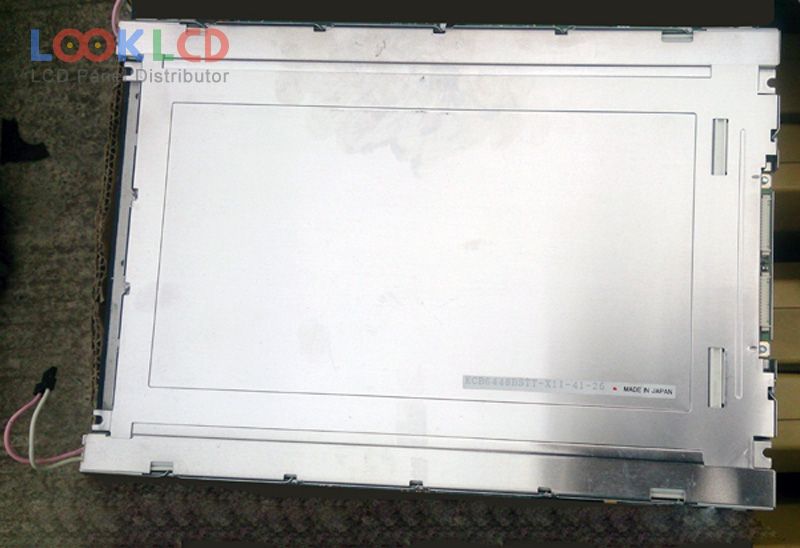

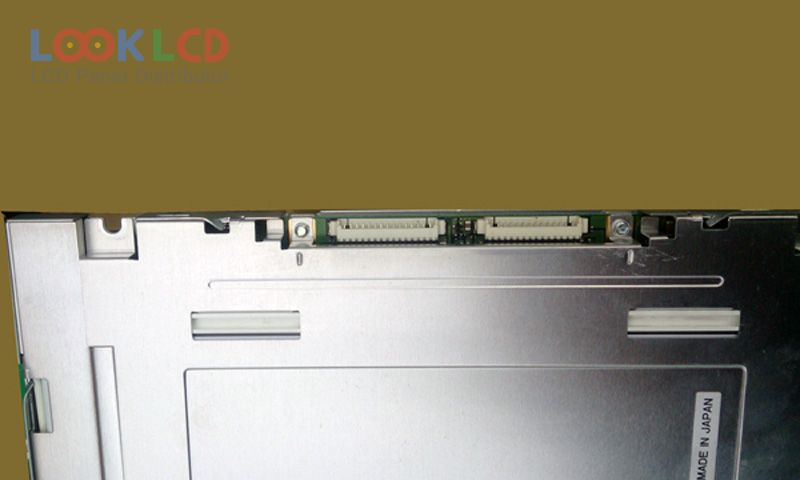

| PartNumber | KCB6448BSTT-X11 |
| Marca | Kyocera |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 640×480 |
| Compoziţie | LCM |
| Luminozitate | 130 |
| CR | 20:1 |
| Culori | Color |
| Iluminare de fundal | CCFL |
| Interfață | Parallel Data |
| marca panoului | Kyocera |
| model de panou | KCB6448BSTT-X11 |
| tip panou | CSTN-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 640(RGB)×480 , VGA |
| modul de afișare | STN, Normally Black, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| suprafaţă | |
| luminozitatea | 130 cd/m² (Typ.) |
| Raport de contrast | 20:1 (Typ.) |
| culorile afișajului | Color , CIE193140% |
| timp de raspuns | 160/80 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/35/20 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 75Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | Parallel Data (2ch, 8-bit) |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | IA |
