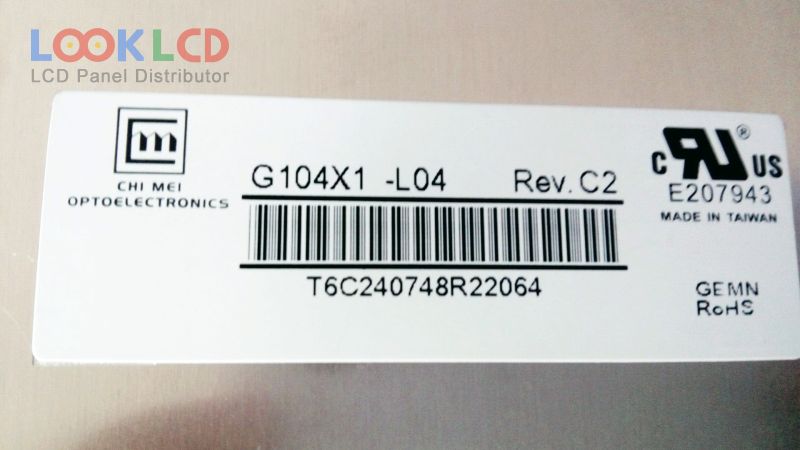

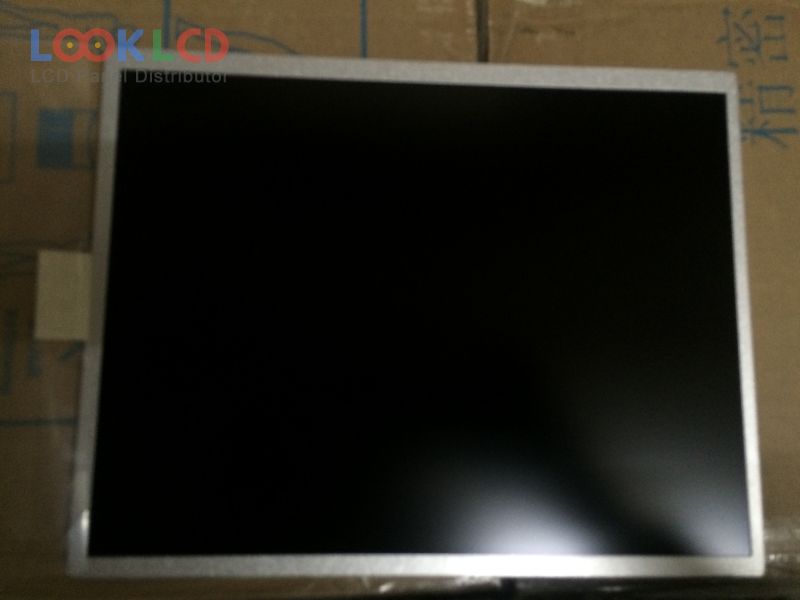

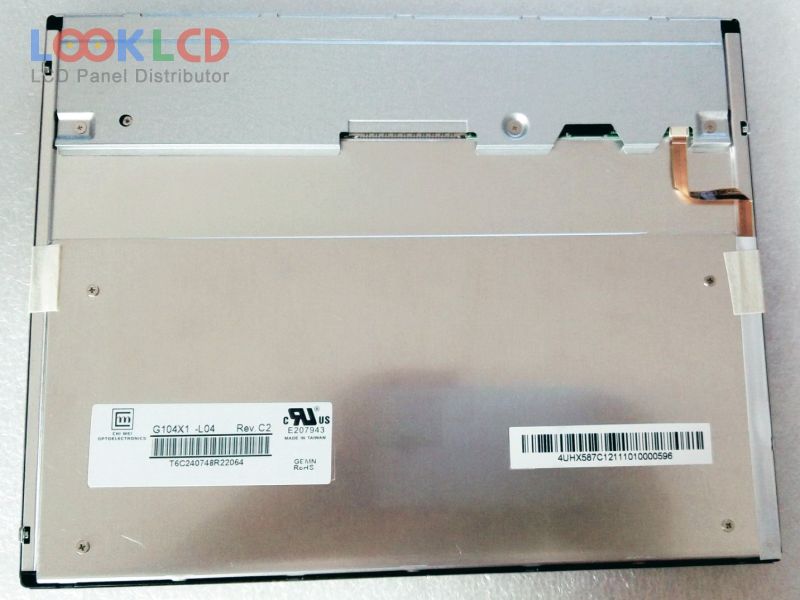

| PartNumber | G104X1-L04 |
| Marca | Innolux |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 1000:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | G104X1-L04 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | Super MVA, Normally Black, Transmissive |
| Zonă activă | 210.4×157.8 mm |
| contur | 225.5×176.3×9.2 mm |
| suprafaţă | Antiglare |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC), CIE193155% |
| timp de raspuns | 14/11 (Typ.)(Tr/Td) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
