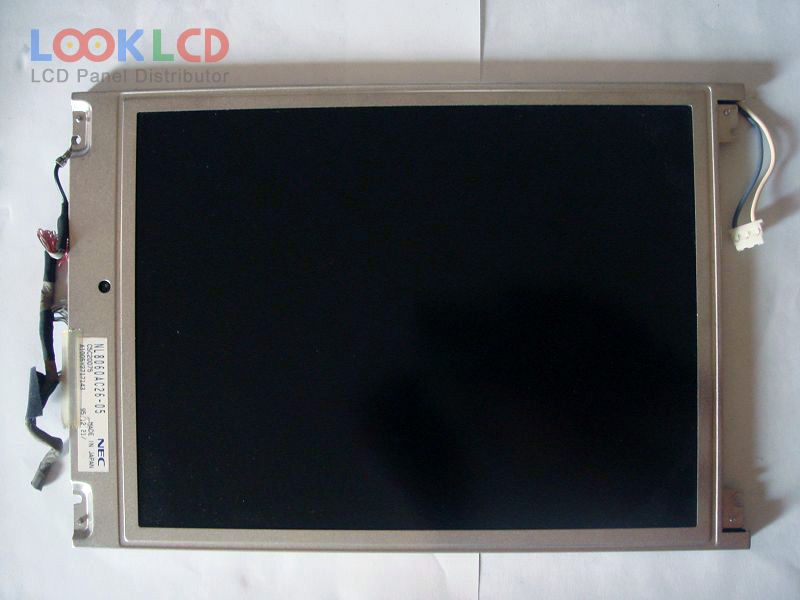

| PartNumber | NL8060AC26-05 |
| Marca | NLT |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 70 |
| CR | 150:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | NEC |
| model de panou | NL8060AC26-05 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 264×180 mm |
| suprafaţă | Antireflection |
| luminozitatea | 70 cd/m² (Typ.) |
| Raport de contrast | 150:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193142% |
| timp de raspuns | 40 (Max.)(Tr) |
| unghi de vedere | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 41 pins |
| tensiune de intrare | 3.3/5.0V (Typ.)(VCC) |
| aplicarea | IA |
| NL8060BC21-11 | NLT | 8.4 | 800×600 |
| NL8060BC26-13 | NLT | 10.4 | 800×600 |
| NL8060BC26-15 | NLT | 10.4 | 800×600 |
| NL8060BC26-30C | NLT | 10.4 | 800×600 |
| NL8060BC26-30D | NLT | 10.4 | 800×600 |
| NL8060BC31-02 | NLT | 12.1 | 800×600 |
| NL8060BC31-17 | NLT | 12.1 | 800×600 |
| NL8060BC31-28D | NLT | 12.1 | 800×600 |
| NL8060BC31-42D | NLT | 12.1 | 800×600 |
| NL8060BC31-47 | NLT | 12.1 | 800×600 |
| AM-800480LTMQW-00H-F | AMPIRE | 5.0 | 800×480 |
| FX050605DNCWAG03 | Data Image | 5.6 | |
| G150XTN03.2 | AUO | 15.0 | 1024×768 |
| LB190E02-SL02 | LG Display | 19.0 | 1280×1024 |
| LQ10DH15 | SHARP | 10.4 | 640×480 |
| LTM09C016K | TOSHIBA | 9.4 | 640×480 |
| NL6448BC18-01 | NLT | 5.7 | 640×480 |
| RGS10128032WR006 | RiTdisplay | 1.0 | 128×32 |
| TM058WA-22L03 | SANYO | 5.8 | 400×234 |
| UG-2864ALBPG01 | WiseChip | 2.4 | 128×64 |
