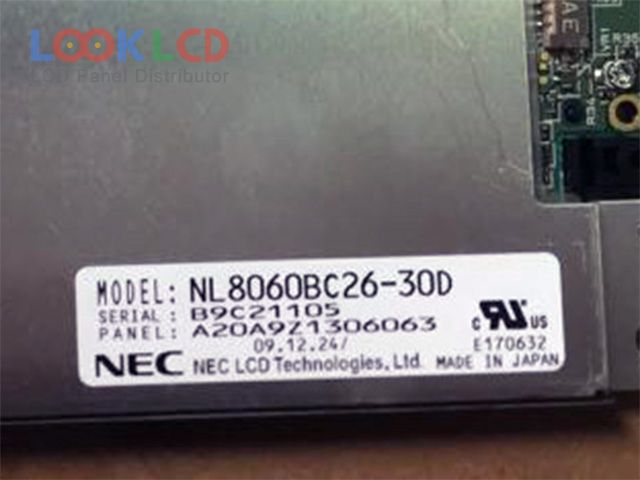

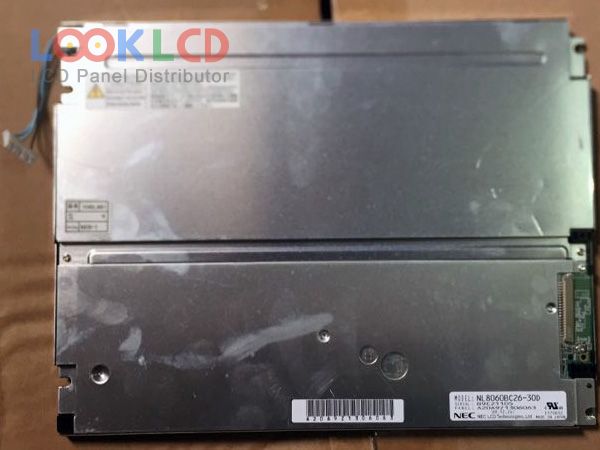

| PartNumber | NL8060BC26-30D |
| Marca | NLT |
| mărimea | 10.4 |
| Aplicație | IA |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 1000:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | NEC |
| model de panou | NL8060BC26-30D |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 243×185.1×11 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| timp de raspuns | 3/15 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
