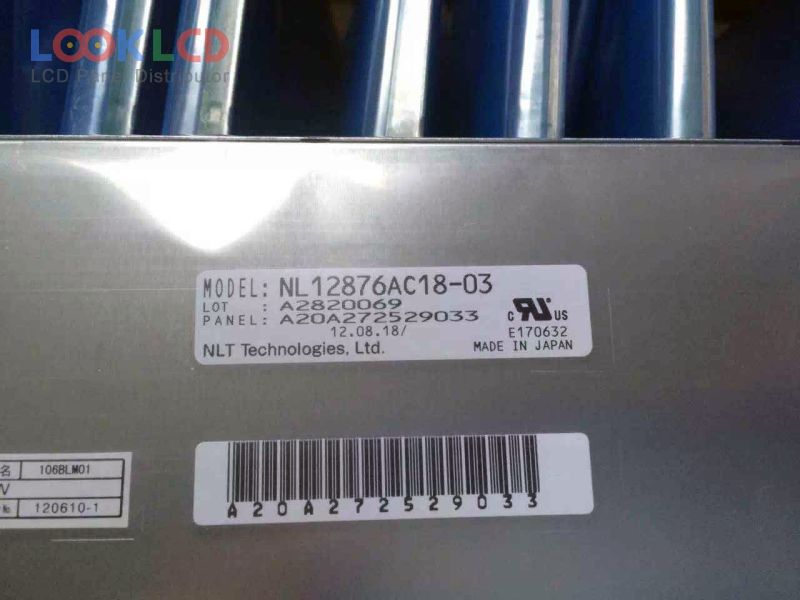

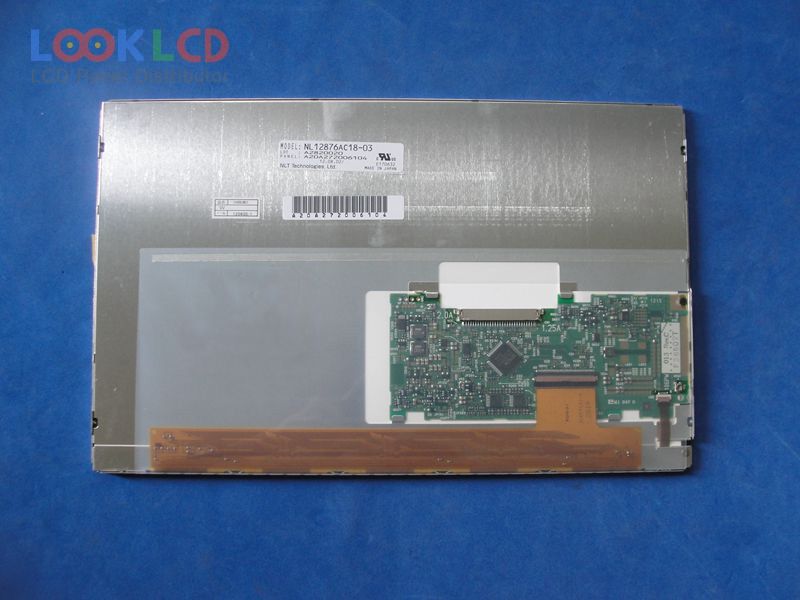

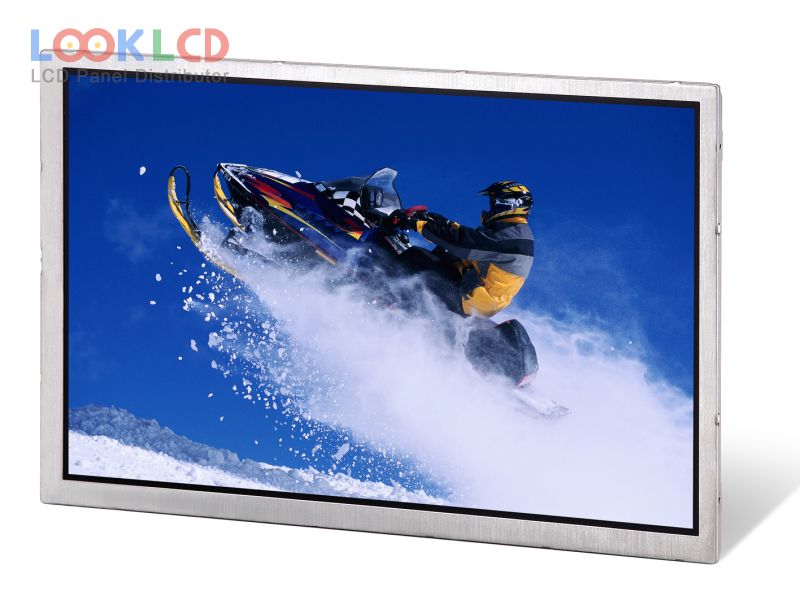

| PartNumber | NL12876AC18-03 |
| Marca | NLT |
| mărimea | 10.6 |
| Aplicație | IA |
| Rezoluţie | 1280×768 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 1000:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | NLT |
| model de panou | NL12876AC18-03 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.6 inch |
| rezoluţie | 1280(RGB)×768 , WXGA |
| modul de afișare | UA-SFT, Normally Black, Transmissive |
| Zonă activă | 230.4×138.24 mm |
| contur | 248.8×155.8×7 mm |
| suprafaţă | Clear, Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| timp de raspuns | 13/12 (Typ.)(Tr/Td) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
| LQ106K1LA05 | SHARP | 10.6 | 1280×768 |
| LTD106EXXF | TOSHIBA | 10.6 | 1280×768 |
| LTL106AL01-002 | Samsung | 10.6 | 1366×768 |
| LTN106W1-L01 | Samsung | 10.6 | 1280×768 |
| NL12876AC18-03 | NLT | 10.6 | 1280×768 |
| NL12876AC18-03D | NLT | 10.6 | 1280×768 |
| NL12876AC39-01 | NLT | 23.0 | 1280×768 |
| NL12876BC15-01 | NLT | 8.9 | 1280×768 |
| NL12876BC26-25 | NLT | 15.3 | 1280×768 |
| NL12876BC26-28 | NLT | 15.3 | 1280×768 |
| AA084SB11 | Mitsubishi | 8.4 | 800×600 |
| AA104VC02 | Mitsubishi | 10.4 | 640×480 |
| AA121XK01 | Mitsubishi | 12.1 | 1024×768 |
| LM10V332 | SHARP | 10.4 | 640×480 |
| LM24P20 | SHARP | 5.7 | 240×128 |
| LQ121S1LG44 | SHARP | 12.1 | 800×600 |
| LQ150X1LG82 | SHARP | 15.0 | 1024×768 |
| NL10276BC30-18L | NLT | 15.0 | 1024×768 |
| NL6448BC18-06F | NLT | 5.7 | 640×480 |
| TM121SV-A01 | SANYO | 12.1 | 800×600 |
