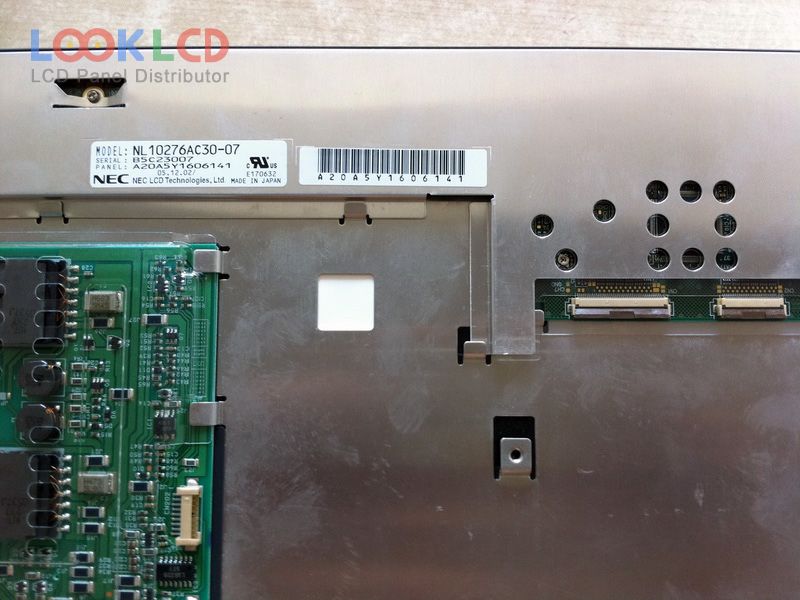

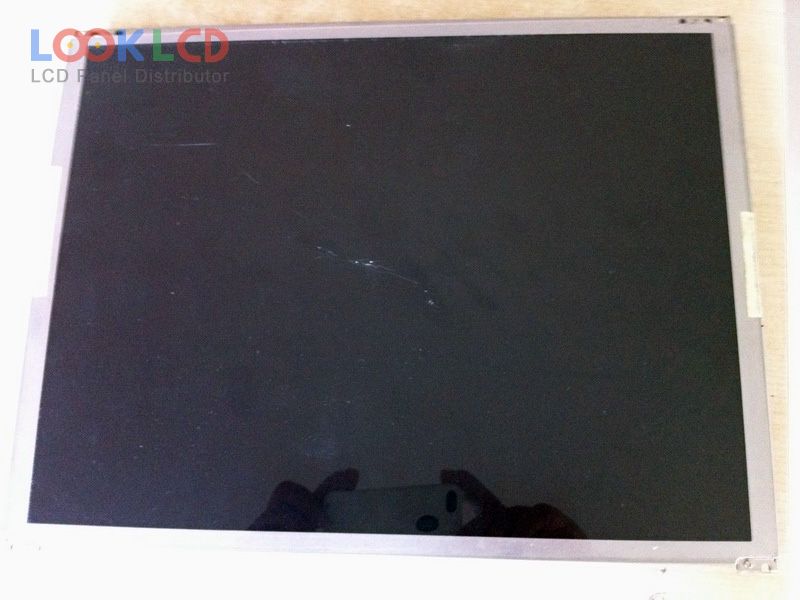

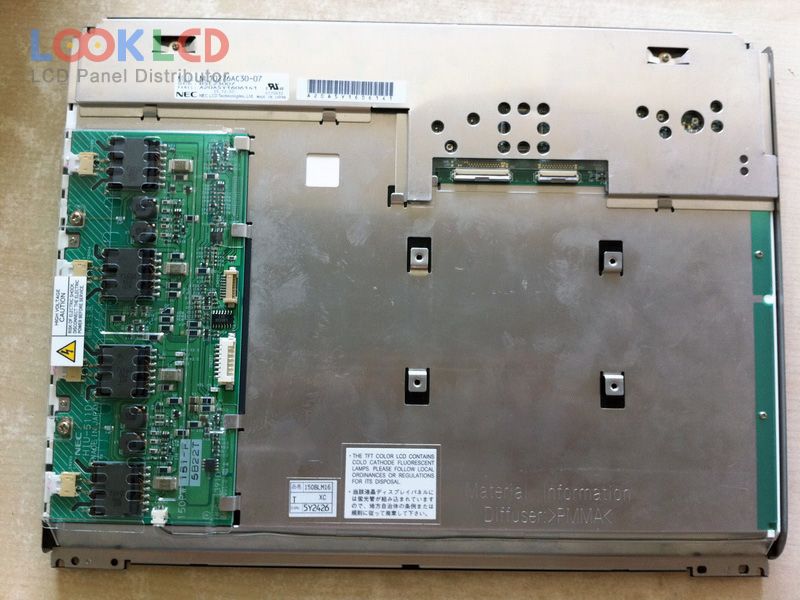

| PartNumber | NL10276AC30-07 |
| Marca | NLT |
| mărimea | 15.0 |
| Aplicație | DMPC |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 300:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | NEC |
| model de panou | NL10276AC30-07 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.0 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | Normally Black, Transmissive |
| Zonă activă | 304.128×228.096 mm |
| contur | 330×256×30 mm |
| suprafaţă | Hard coating (2H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193160% |
| timp de raspuns | 10/10 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8 pcsCCFLEmbedded (Inverter) |
| interfață de semnal | TTL (2 ch, 8-bit), 75 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
