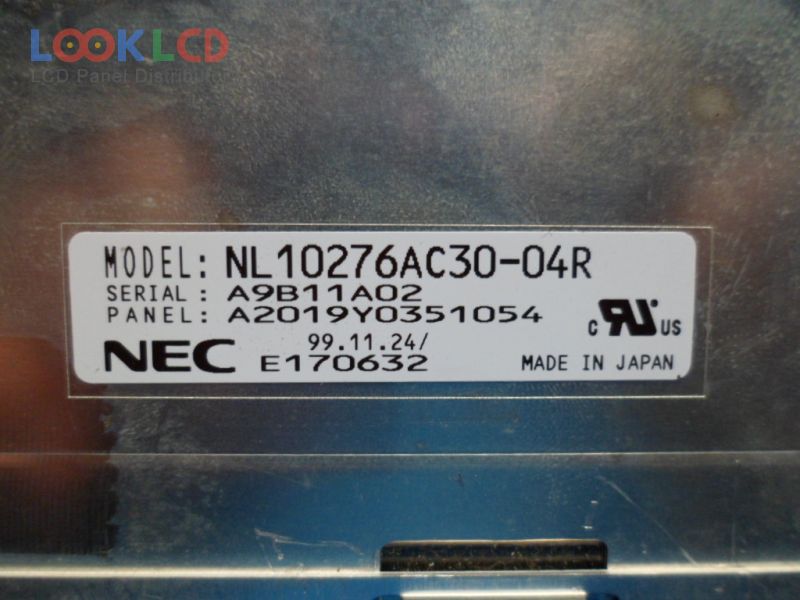

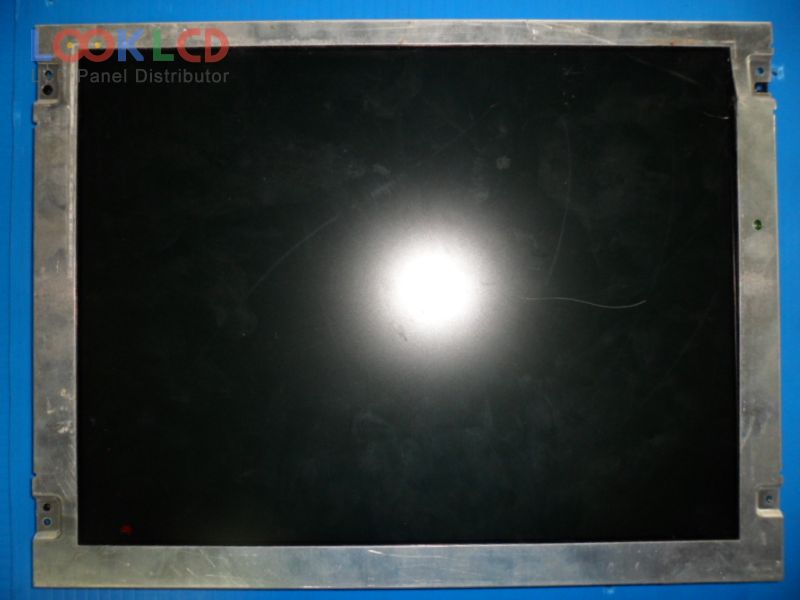

| PartNumber | NL10276AC30-04R |
| Marca | NLT |
| mărimea | 15.0 |
| Aplicație | DMPC |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 200:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | NEC |
| model de panou | NL10276AC30-04R |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.0 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 304.128×228.096 mm |
| contur | 350×265×20.5 mm |
| suprafaţă | Antireflection |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 200:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193140% |
| timp de raspuns | 15/40 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLEmbedded (Inverter) |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| NL10276AC24-05 | NLT | 12.1 | 1024×768 |
| NL10276AC28-05R | NLT | 14.1 | 1024×768 |
| NL10276AC30-04R | NLT | 15.0 | 1024×768 |
| NL10276AC30-07 | NLT | 15.0 | 1024×768 |
| NL10276AC30-42C | NLT | 15.0 | 1024×768 |
| NL10276BC12-02 | NLT | 6.3 | 1024×768 |
| NL10276BC20-04 | NLT | 10.4 | 1024×768 |
| NL10276BC20-37 | NLT | 10.4 | 1024×768 |
| NL10276BC30-38B | NLT | 15.0 | 1024×768 |
| NL10276BC30-39 | NLT | 15.0 | 1024×768 |
| LM185WH2-T2BB | LG Display | 18.5 | 1366×768 |
| LM200WD3-TLC7 | LG Display | 20.0 | 1600×900 |
| LM215DB-T02 | PANDA | 21.5 | 1920×1080 |
| LM270WF7-SSB1 | LG Display | 27.0 | 1920×1080 |
| M240HW01 V2 | AUO | 24.0 | 1920×1080 |
| M240UW01 V0 | AUO | 24.0 | 1920×1200 |
| M260J2-L07 | Innolux | 25.5 | 1920×1200 |
| MT190AW01 V.5 | Innolux | 19.0 | 1440×900 |
| MV215FHM-N30 | BOE | 21.5 | 1920×1080 |
| SVA156WX1-01TB | SVA-NEC | 15.6 | 1366×768 |
