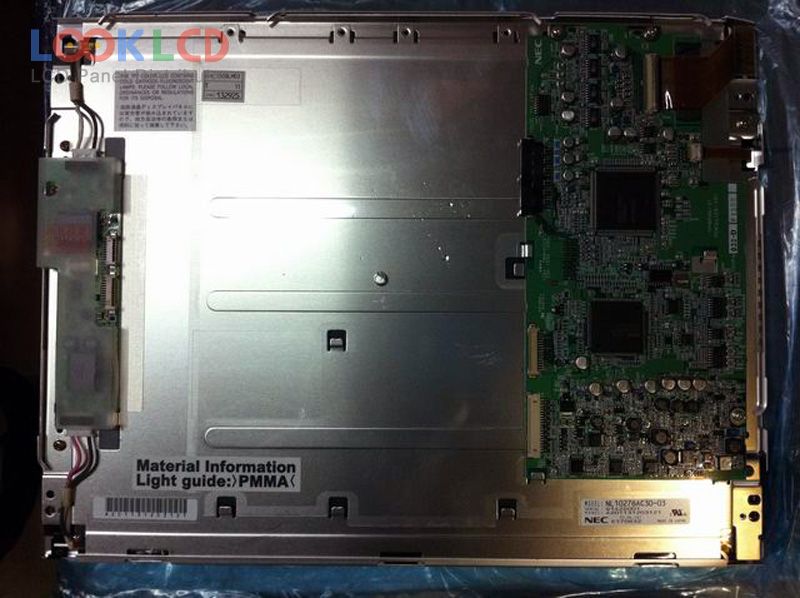

| PartNumber | NL10276AC30-03 |
| Marca | NLT |
| mărimea | 15.0 |
| Aplicație | DMPC |
| Rezoluţie | 1024×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 200:1 |
| Culori | Full color |
| Iluminare de fundal | CCFL |
| Interfață | Analog |
| marca panoului | NEC |
| model de panou | NL10276AC30-03 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.0 inch |
| rezoluţie | 1024(RGB)×768 , XGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 304.128×228.096 mm |
| contur | 350×265×20.5 mm |
| suprafaţă | |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 200:1 (Typ.) |
| culorile afișajului | Full color , CIE193142% |
| timp de raspuns | 15/40 (Typ.)(Tr/Td) |
| unghi de vedere | 55/55/50/45 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 2 pcsCCFLEmbedded (Inverter) |
| interfață de semnal | Analog RGB, 41 pins |
| tensiune de intrare | 12.0V (Typ.) |
| aplicarea | DMPC |
| NL10276AC24-05 | NLT | 12.1 | 1024×768 |
| NL10276AC28-05R | NLT | 14.1 | 1024×768 |
| NL10276AC30-03 | NLT | 15.0 | 1024×768 |
| NL10276AC30-04R | NLT | 15.0 | 1024×768 |
| NL10276AC30-42C | NLT | 15.0 | 1024×768 |
| NL10276BC12-02 | NLT | 6.3 | 1024×768 |
| NL10276BC20-04 | NLT | 10.4 | 1024×768 |
| NL10276BC24-13 | NLT | 12.1 | 1024×768 |
| NL10276BC30-17 | NLT | 15.0 | 1024×768 |
| NL10276BC30-34D | NLT | 15.0 | 1024×768 |
| FLC44SXC8V | Fujitsu | 17.4 | 1280×1024 |
| LM170E01-TLB3 | LG Display | 17.0 | 1280×1024 |
| LM185WH2-TLA1 | LG Display | 18.5 | 1366×768 |
| LM200WD3-TLA1 | LG Display | 20.0 | 1600×900 |
| LM201W01-B6K1 | LG Display | 20.1 | 1680×1050 |
| LTM170EU-A01 | Samsung | 17.0 | 1280×1024 |
| LTM213U3-L07 | Samsung | 21.3 | 1600×1200 |
| M170EG01 VF | AUO | 17.0 | 1280×1024 |
| M240UW04 V1 | AUO | 24.0 | 1920×1200 |
| NL160120BC27-09 | NLT | 21.3 | 1600×1200 |
