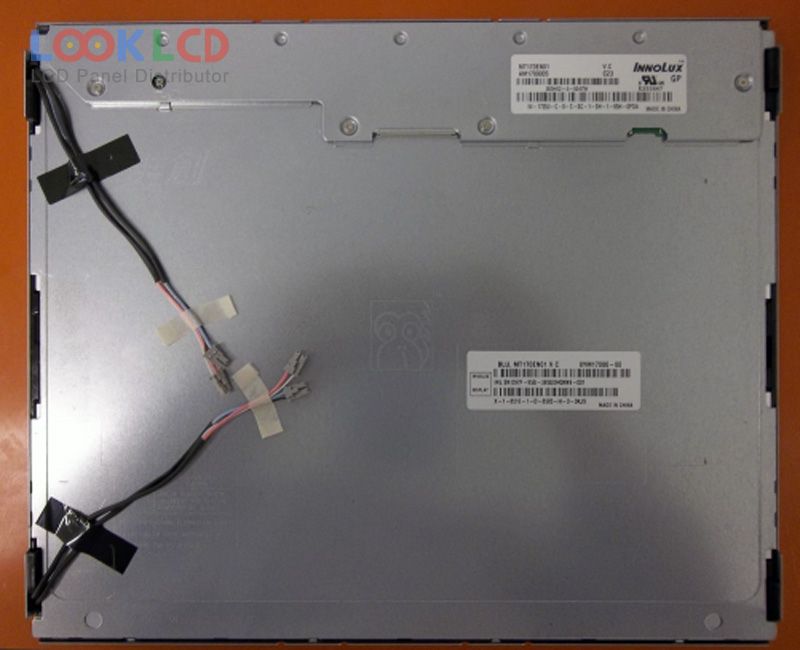

| PartNumber | MT170EN01 V.C |
| Marca | Innolux |
| mărimea | 17.0 |
| Aplicație | DMPC |
| Rezoluţie | 1280×1024 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | INNOLUX |
| model de panou | MT170EN01 V.C |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 17.0 inch |
| rezoluţie | 1280(RGB)×1024 , SXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 337.92×270.336 mm |
| contur | 358.5×296.5×16.5 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 1/4 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| B170PW03 V1 | AUO | 17.0 | 1440×900 |
| LM170E01-TLB3 | LG Display | 17.0 | 1280×1024 |
| LM170E03-TLG1 | LG Display | 17.0 | 1280×1024 |
| LTN170CT08-D01 | Samsung | 17.0 | 1920×1200 |
| LTN170X2-L02 | Samsung | 17.0 | 1440×900 |
| M170E5-L09 | Innolux | 17.0 | 1280×1024 |
| M170EG01 VH | AUO | 17.0 | 1280×1024 |
| MT170EN01 V.1 | Innolux | 17.0 | 1280×1024 |
| MT170EN01 V.9 | Innolux | 17.0 | 1280×1024 |
| MT170EN01 V.C | Innolux | 17.0 | 1280×1024 |
| LM230WF3-S2E4 | LG Display | 23.0 | 1920×1080 |
| LM240WU7-SLB3 | LG Display | 24.0 | 1920×1200 |
| LM260WU1-SLB1 | LG Display | 25.5 | 1920×1200 |
| LTM150XH-L06 | Samsung | 15.0 | 1024×768 |
| LTM200KT05 | Samsung | 20.0 | 1600×900 |
| M170EG01 V9 | AUO | 17.0 | 1280×1024 |
| M216H1-L01 | Innolux | 21.6 | 1920×1080 |
| M270H1-L01 | Innolux | 27.0 | 1920×1080 |
| SVA190WX05TB | SVA-NEC | 19.0 | 1440×900 |
| TM190MFS01 | Tianma | 19.0 | 1440×900 |
