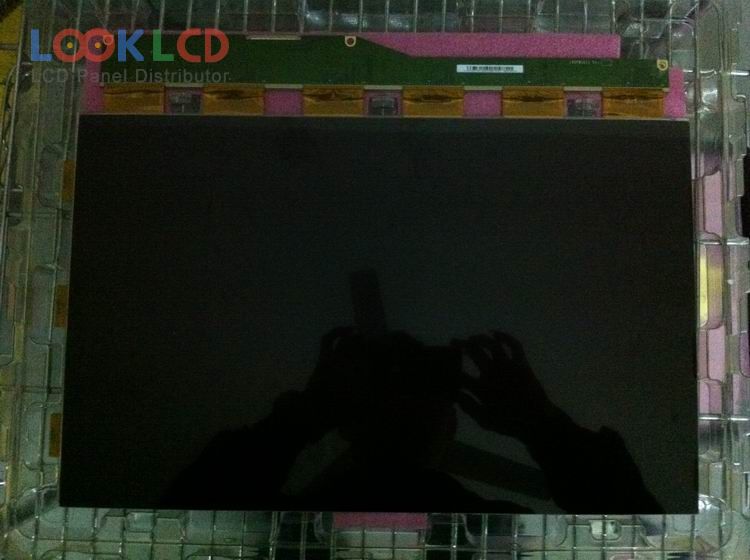

| PartNumber | TM190MFS01 |
| Marca | Tianma |
| mărimea | 19.0 |
| Aplicație | DMPC |
| Rezoluţie | 1440×900 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | LVDS |
| marca panoului | TIANMA |
| model de panou | TM190MFS01 |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 19.0 inch |
| rezoluţie | 1440(RGB)×900 , WXGA+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 408.24×255.15 mm |
| suprafaţă | |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 1.3/3.7 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
