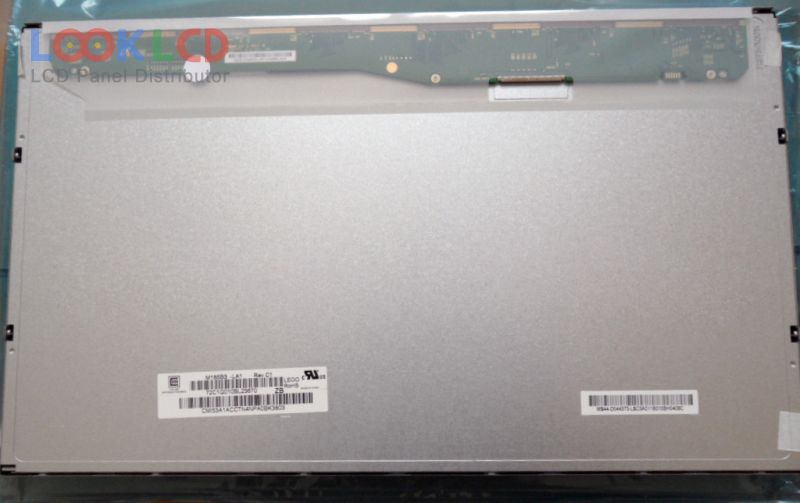

| PartNumber | M185B3-LA1 |
| Marca | Innolux |
| mărimea | 18.5 |
| Aplicație | DMPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CMO |

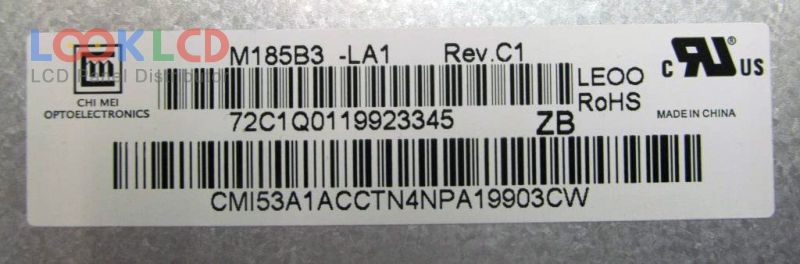

| model de panou | M185B3-LA1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 18.5 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 409.8×230.4 mm |
| contur | 430.37×254.6×11 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193170% |
| timp de raspuns | 1.3/3.7 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 13S8PWLEDWithout Driver |

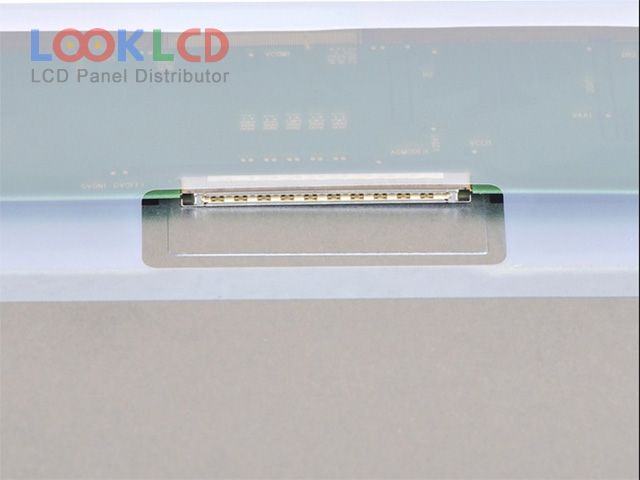

| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| HT185WX1-100 | BOE | 18.5 | 1366×768 |
| M185B1-L02 | Innolux | 18.5 | 1366×768 |
| M185B1-L07 | Innolux | 18.5 | 1366×768 |
| M185B3-LA1 | Innolux | 18.5 | 1366×768 |
| M185BGE-L10 | Innolux | 18.5 | 1366×768 |
| M185BGE-L22 | Innolux | 18.5 | 1366×768 |
| M185BGE-L23 | Innolux | 18.5 | 1366×768 |
| M185BGE-L2U | Innolux | 18.5 | 1366×768 |
| M185BGE-P02 | Innolux | 18.5 | 1366×768 |
| HSD190MEN3-A03 | HannStar | 19.0 | 1280×1024 |
| LM215WF3-SDC2 | LG Display | 21.5 | 1920×1080 |
| LM240WU3-TLD1 | LG Display | 24.0 | 1920×1200 |
| M170EG01 VH | AUO | 17.0 | 1280×1024 |
| M185XW01 V1 | AUO | 18.5 | 1366×768 |
| M185XW01 V2 | AUO | 18.5 | 1366×768 |
| M200O3-LA3 | Innolux | 20.0 | 1600×900 |
| M215HJJ-L30 Rev.B1 | Innolux | 21.5 | 1920×1080 |
| M280DGJ-L30 | Innolux | 28.0 | 3840×2160 |
| MT190EN02 V.W | Innolux | 19.0 | 1280×1024 |
