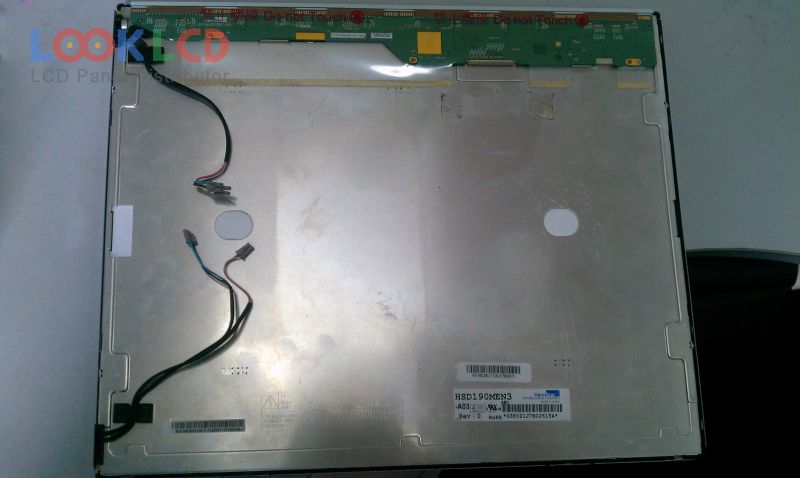

| PartNumber | HSD190MEN3-A03 |
| Marca | HannStar |
| mărimea | 19.0 |
| Aplicație | DMPC |
| Rezoluţie | 1280×1024 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | HannStar |
| model de panou | HSD190MEN3-A03 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 19.0 inch |
| rezoluţie | 1280(RGB)×1024 , SXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 376.32×301.056 mm |
| contur | 396×324×17 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC) |
| timp de raspuns | 1.2/3.8 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| HSD190ME12-A10 | HannStar | 19.0 | 1280×1024 |
| HSD190ME13-A13 | HannStar | 19.0 | 1280×1024 |
| HSD190ME13-D10 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN3-A00 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN3-A01 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN4-A02 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN4-A03 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN6-A00 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN6-A01 | HannStar | 19.0 | 1280×1024 |
| HSD190MGW1-B00 | HannStar | 19.0 | 1440×900 |
| LM185WH2-TLE2 | LG Display | 18.5 | 1366×768 |
| LM201WE3-TLE1 | LG Display | 20.1 | 1680×1050 |
| LM215DT1A | PANDA | 21.5 | 1920×1080 |
| LM215WF4-TLE7 | LG Display | 21.5 | 1920×1080 |
| LM238WR1-SLA1 | LG Display | 23.8 | 3840×2160 |
| M170EG01 V5 | AUO | 17.0 | 1280×1024 |
| M270DTN01.0 | AUO | 27.0 | 2560×1440 |
| TM150XG-26L06A | SANYO | 15.0 | 1024×768 |
| TM190MCS02 | Tianma | 19.0 | 1440×900 |
| TX43D14VC0CAB | KOE | 17.0 | 1280×1024 |
