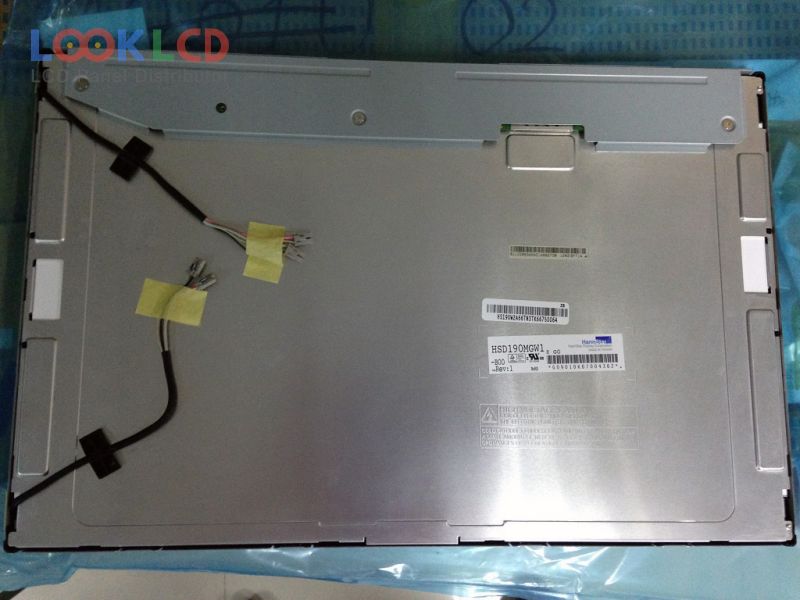

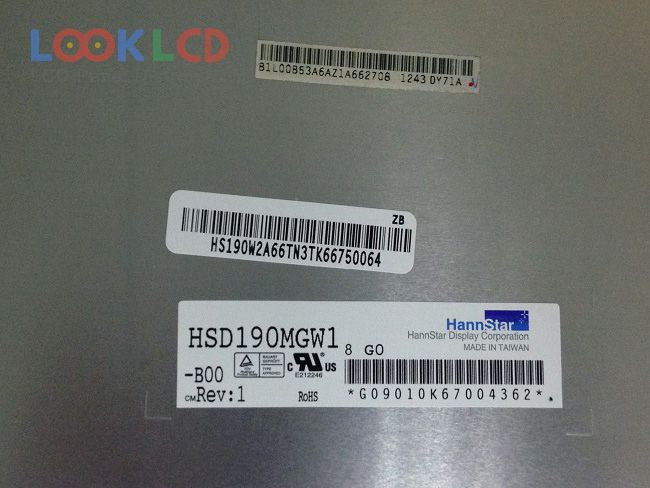

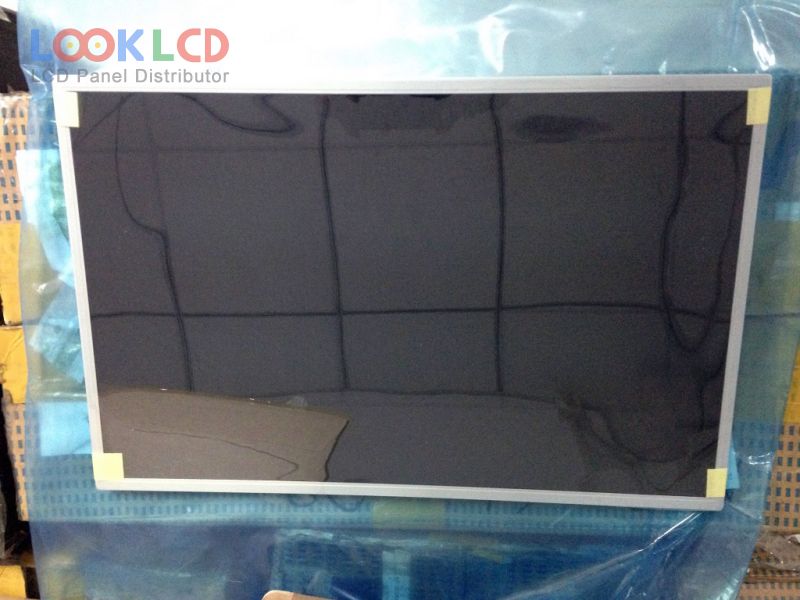

| PartNumber | HSD190MGW1-B00 |
| Marca | HannStar |
| mărimea | 19.0 |
| Aplicație | DMPC |
| Rezoluţie | 1440×900 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 700:1 |
| Culori | 16.2M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | HannStar |
| model de panou | HSD190MGW1-B00 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 19.0 inch |
| rezoluţie | 1440(RGB)×900 , WXGA+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 408.24×255.15 mm |
| contur | 428×278×19 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 16.2M (6-bit + FRC), CIE193172% |
| timp de raspuns | 1.5/3.5 (Typ.)(Tr/Td) |
| unghi de vedere | 75/75/75/65 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| HSD190ME12-A02 | HannStar | 19.0 | 1280×1024 |
| HSD190ME12-A10 | HannStar | 19.0 | 1280×1024 |
| HSD190ME13-A13 | HannStar | 19.0 | 1280×1024 |
| HSD190ME13-D10 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN3-A00 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN3-A01 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN3-A03 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN6-A00 | HannStar | 19.0 | 1280×1024 |
| HSD190MEN6-A01 | HannStar | 19.0 | 1280×1024 |
| HSD190MGW1-B00 | HannStar | 19.0 | 1440×900 |
| LM200WD3-TLC9 | LG Display | 20.0 | 1600×900 |
| LM270WF6-SSZ1 | LG Display | 27.0 | 1920×1080 |
| LTM230HT09 | Samsung | 23.0 | 1920×1080 |
| LTM340YP02 | Samsung | 34 | 3440×1440 |
| M150EW01 V0 | AUO | 15.0 | 1280×720 |
| M190A1-L01 | Innolux | 19.0 | 1440×900 |
| M270HGE-L30 | Innolux | 27.0 | 1920×1080 |
| MV238QUM-N20 | BOE | 23.8 | 3840×2160 |
| NL128102AC23-01 | NLT | 15.4 | 1280×1024 |
| NL256204AM15-02A | NLT | 20.1 | 2560×2048 |
