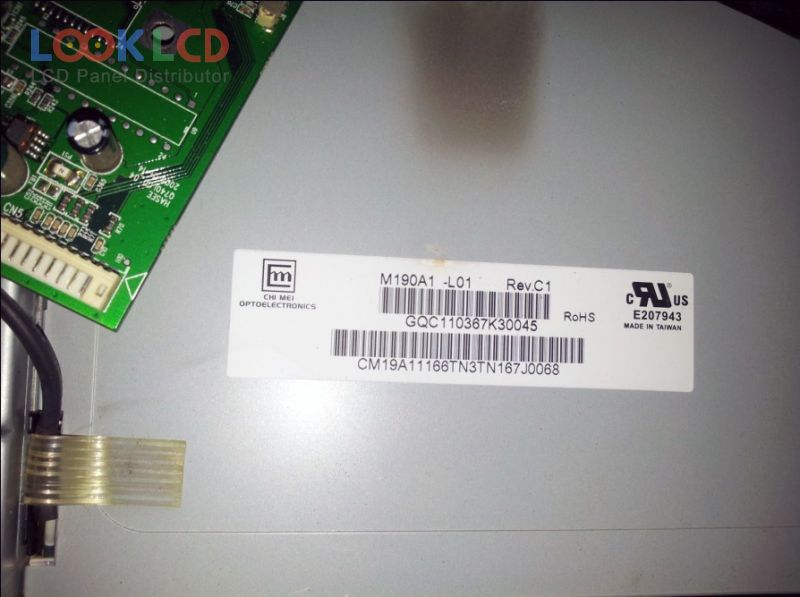

| PartNumber | M190A1-L01 |
| Marca | Innolux |
| mărimea | 19.0 |
| Aplicație | DMPC |
| Rezoluţie | 1440×900 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 500:1 |
| Culori | 16.2M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | M190A1-L01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 19.0 inch |
| rezoluţie | 1440(RGB)×900 , WXGA+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 410.4×256.5 mm |
| contur | 427.2×277.4×17.5 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.2M (6-bit + FRC) |
| timp de raspuns | 2/6 (Typ.)(Tr/Td) |
| unghi de vedere | 75/75/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
