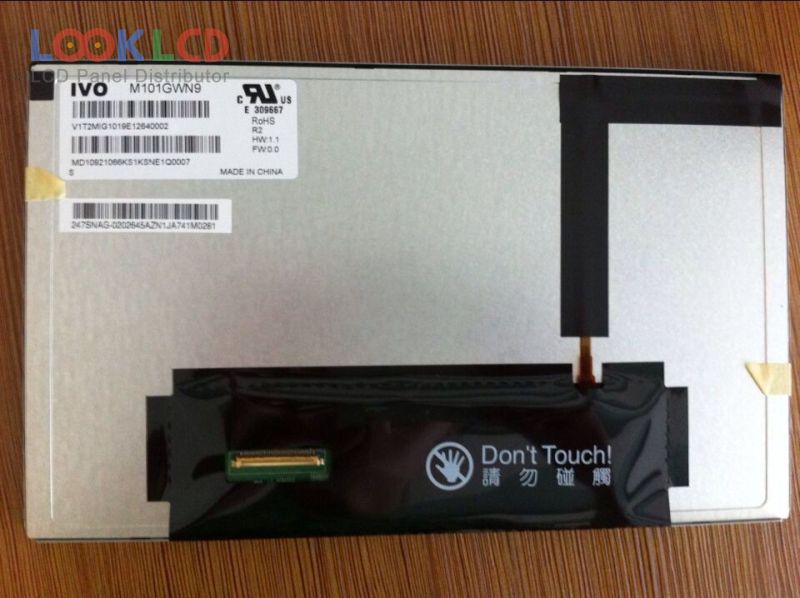

| PartNumber | M101GWN9 R2 |
| Marca | IVO |
| mărimea | 10.1 |
| Aplicație | IA |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | IVO |
| model de panou | M101GWN9 R2 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 222.72×125.28 mm |
| contur | 235×143×8.04 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193145% |
| timp de raspuns | 6/10 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
| A101AIE40L0 | Aptus | 10.1 | 1280×720 |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| CLAA101NA0ACN | CPT | 10.1 | 1024×576 |
| G101STN01.0 | AUO | 10.1 | 1024×600 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| HSD100IFW1-A00 | HannStar | 10.1 | 1024×600 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| M101GWN9 R0 | IVO | 10.1 | 1024×600 |
| M101GWN9 R2 | IVO | 10.1 | 1024×600 |
| M101GWT9 R3 | IVO | 10.1 | 1024×600 |
| COM50H5125XLC | ORTUSTECH | 5.0 | 320×240 |
| EL640.480-AG1 | Lumineq | 8.1 | 640×480 |
| G104XGE-L05 | Innolux | 10.4 | 1024×768 |
| G190ETN01.1 | AUO | 19.0 | 1280×1024 |
| HTW-G320240B2 | Other | 5.7 | 320×240 |
| LJ32H028 | SHARP | 4.7 | 320×240 |
| LMBHAT014G16CKS | NAN YA | 5.4 | 240×128 |
| LQ084S3DG01 | SHARP | 8.4 | 800×600 |
| NL8060AC26-52D | NLT | 10.4 | 800×600 |
| TM057KDH03 | Tianma | 5.7 | 320×240 |
