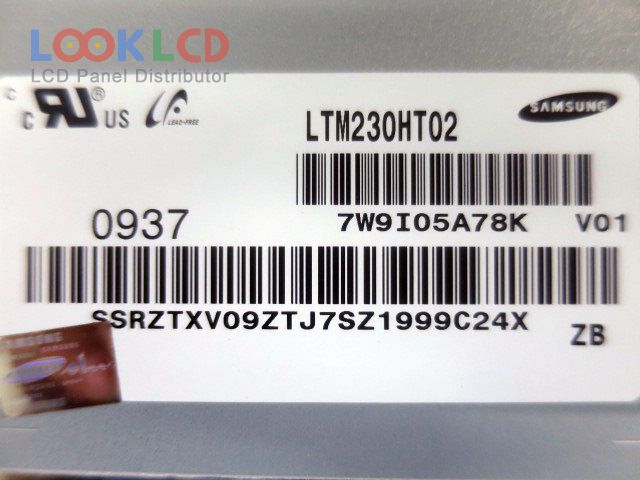

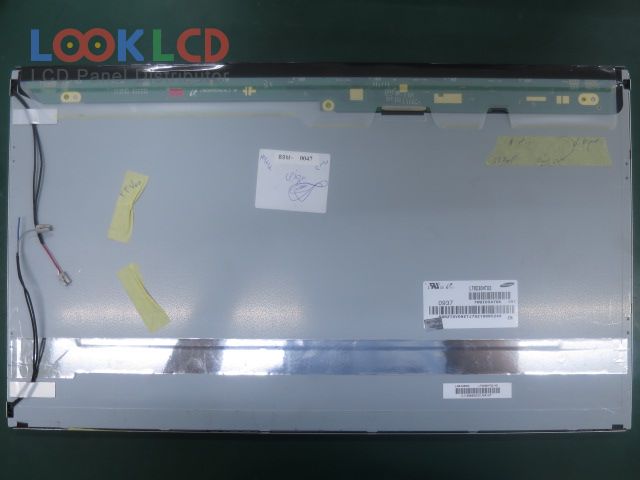

| PartNumber | LTM230HT02 |
| Marca | Samsung |
| mărimea | 23.0 |
| Aplicație | DMPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTM230HT02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 23.0 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 509.76×286.74 mm |
| contur | 534×311.7×12 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 5 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| LTM230HL08 | Samsung | 23.0 | 1920×1080 |
| LTM230HP07 | Samsung | 23.0 | 1920×1080 |
| LTM230HT01 | Samsung | 23.0 | 1920×1080 |
| LTM230HT02 | Samsung | 23.0 | 1920×1080 |
| LTM230HT03 | Samsung | 23.0 | 1920×1080 |
| LTM230HT05 | Samsung | 23.0 | 1920×1080 |
| LTM230HT09 | Samsung | 23.0 | 1920×1080 |
| LTM230HT10 | Samsung | 23.0 | 1920×1080 |
| LTM230HU01 | Samsung | 23.0 | 1920×1080 |
| LTM230TT01 | Samsung | 23.0 | 2048×1152 |
| CLAA170EA07Q | CPT | 17.0 | 1280×1024 |
| HM185WX1-400 | BOE | 18.5 | 1366×768 |
| HR236WU3-301 | BOE | 23.6 | 1920×1080 |
| HT236F01-100 | BOE | 23.6 | 1920×1080 |
| LM220WE3-TLA1 | LG Display | 22.0 | 1680×1050 |
| LTM190E4-L02 | Samsung | 19.0 | 1280×1024 |
| M270HTN01.0 | AUO | 27.0 | 1920×1080 |
| NL160120BC27-14 | NLT | 21.3 | 1600×1200 |
| QD17EL07 Rev.09 | QDI | 17.0 | 1280×1024 |
| TM150XG-22L01A | SANYO | 15.0 | 1024×768 |
