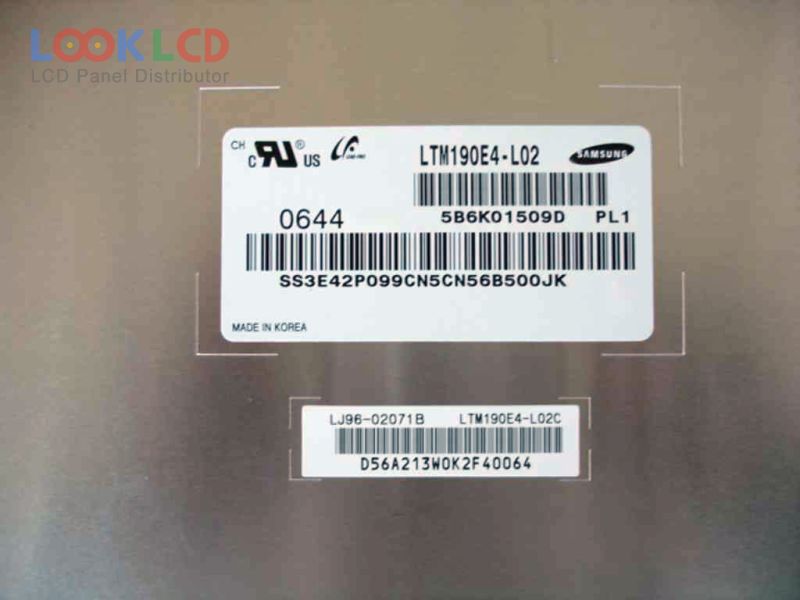

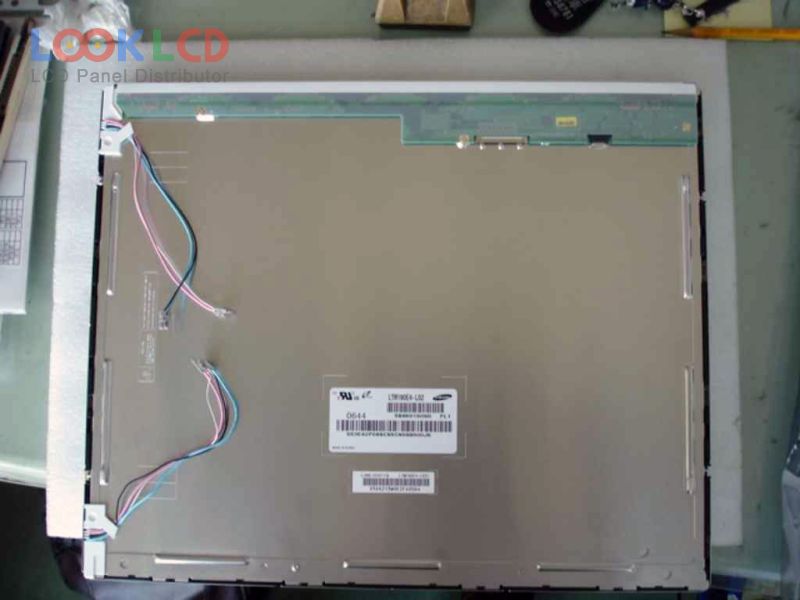

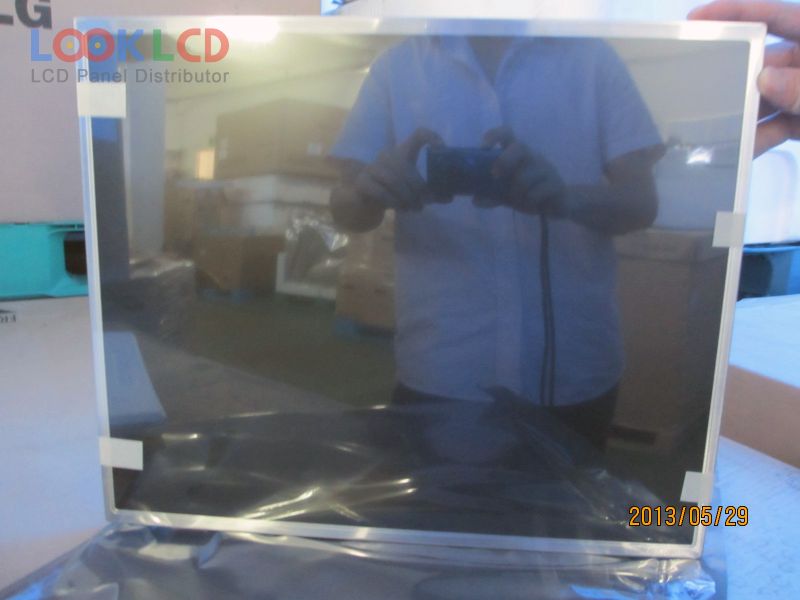

| PartNumber | LTM190E4-L02 |
| Marca | Samsung |
| mărimea | 19.0 |
| Aplicație | DMPC |
| Rezoluţie | 1280×1024 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1500:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTM190E4-L02 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 19.0 inch |
| rezoluţie | 1280(RGB)×1024 , SXGA |
| modul de afișare | PVA, Normally Black, Transmissive |
| Zonă activă | 376.32×301.056 mm |
| contur | 396×324×17 mm |
| suprafaţă | Antiglare (Haze 44%), Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 13/7 (Typ.)(Tr/Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 4 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
