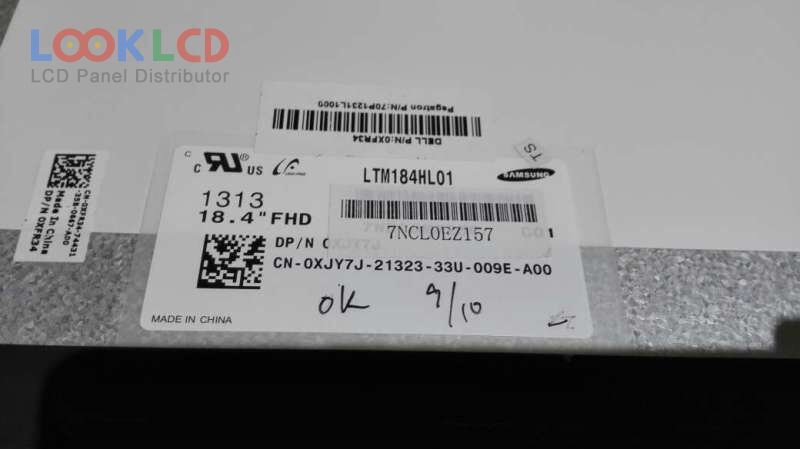

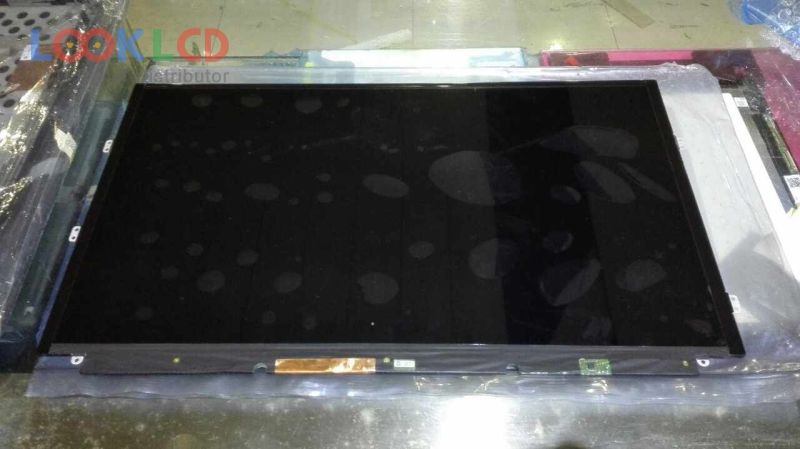

| PartNumber | LTM184HL01 |
| Marca | Samsung |
| mărimea | 18.4 |
| Aplicație | DMPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 1000:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTM184HL01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 18.4 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | PLS, Normally Black, Transmissive |
| Zonă activă | 408.96×230.04 mm |
| contur | 443.4×266.5×4.3 mm |
| suprafaţă | Antiglare (Haze 1%), Antireflection |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193172% |
| timp de raspuns | 16 (Typ.)(G to G) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 12S6PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
