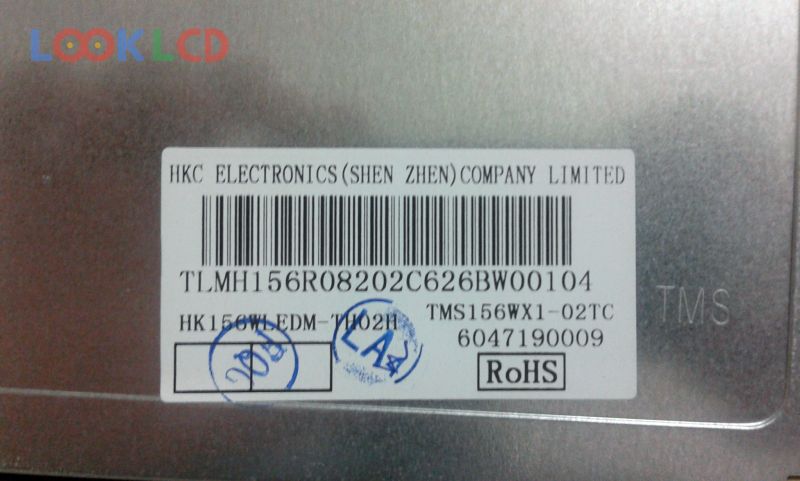

| PartNumber | TMS156WX1-02TC |
| Marca | Tianma |
| mărimea | 15.6 |
| Aplicație | DMPC |
| Rezoluţie | 1366×768 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | No B/L |
| Interfață | LVDS |
| marca panoului | AVIC |
| model de panou | TMS156WX1-02TC |
| tip panou | a-Si TFT-LCD , CELL |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 344.232×193.536 mm |
| suprafaţă | |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193160% |
| timp de raspuns | 2/6 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
