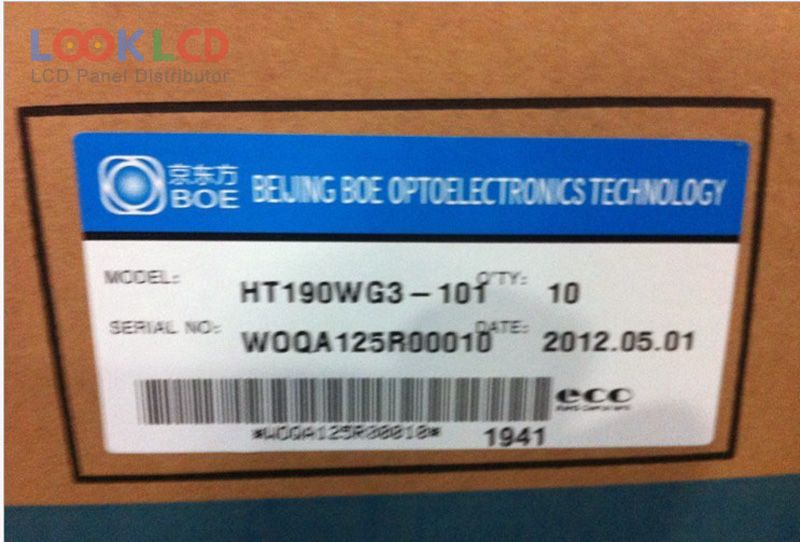

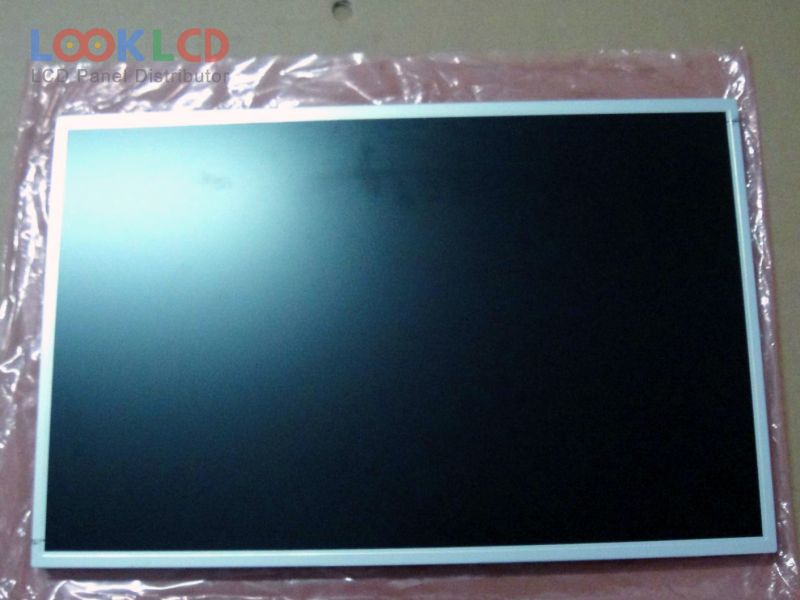

| PartNumber | HT190WG3-101 |
| Marca | BOE |
| mărimea | 19.0 |
| Aplicație | DMPC |
| Rezoluţie | 1440×900 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | BOE |
| model de panou | HT190WG3-101 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 19.0 inch |
| rezoluţie | 1440(RGB)×900 , WXGA+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 408.24×255.15 mm |
| contur | 428×278×17.5 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC) |
| timp de raspuns | 1.5/3.5 (Typ.)(Tr/Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| G190SF01 V0 | AUO | 19.0 | 1680×342 |
| HT190WG1-100 | BOE | 19.0 | 1440×900 |
| HT190WG1-600 | BOE | 19.0 | 1440×900 |
| HT190WG1-602 | BOE | 19.0 | 1440×900 |
| HT190WG3-100 | BOE | 19.0 | 1440×900 |
| HT190WG3-101 | BOE | 19.0 | 1440×900 |
| HT190WG3-500 | BOE | 19.0 | 1440×900 |
| LM190WX1-TLC1 | LG Display | 19.0 | 1440×900 |
| M190A1-L0G | Innolux | 19.0 | 1440×900 |
| M190ETN01.0 | AUO | 19.0 | 1280×1024 |
| LM185WH1-TLA1 | LG Display | 18.5 | 1366×768 |
| LM270WQ1-SDBV | LG Display | 27.0 | 2560×1440 |
| LM300W01-STA1 | LG Display | 30.0 | 2560×1600 |
| LQ170E1LG18 | SHARP | 17.0 | 1280×1024 |
| LTM340YP01 | Samsung | 34 | 3440×1440 |
| M201EW02 V9 | AUO | 20.1 | 1680×1050 |
| M215HGE-P02 | Innolux | 21.5 | 1920×1080 |
| MV238FHM-N10 | BOE | 23.8 | 1920×1080 |
| NL128102BC29-01B | NLT | 19.0 | 1280×1024 |
| TMS190WX1-05TB | Tianma | 19.0 | 1440×900 |
