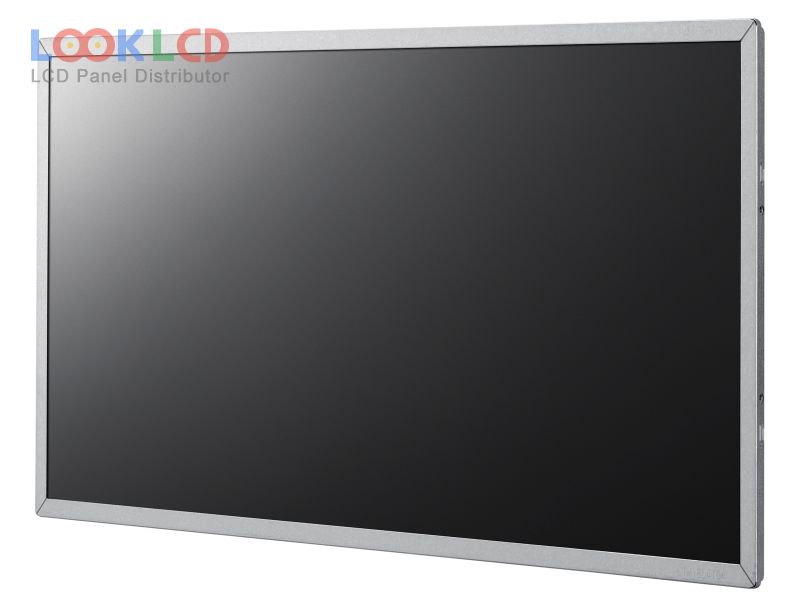

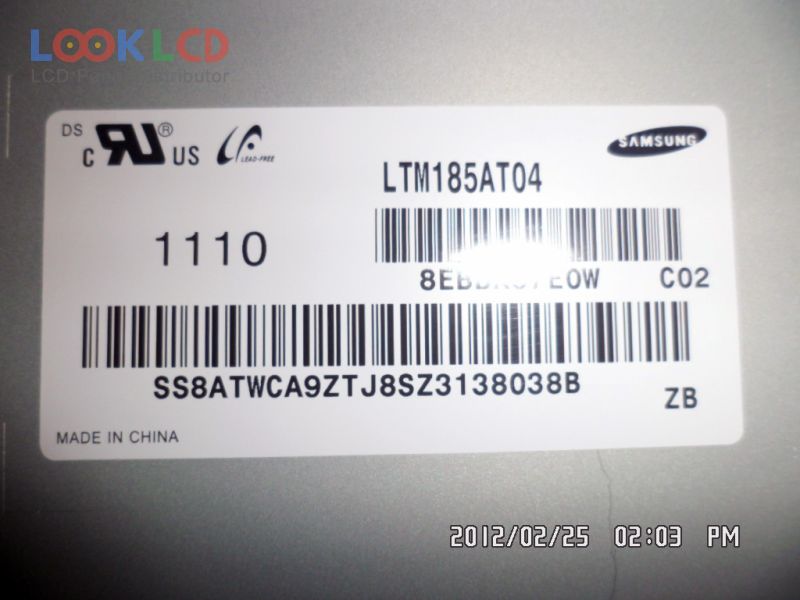

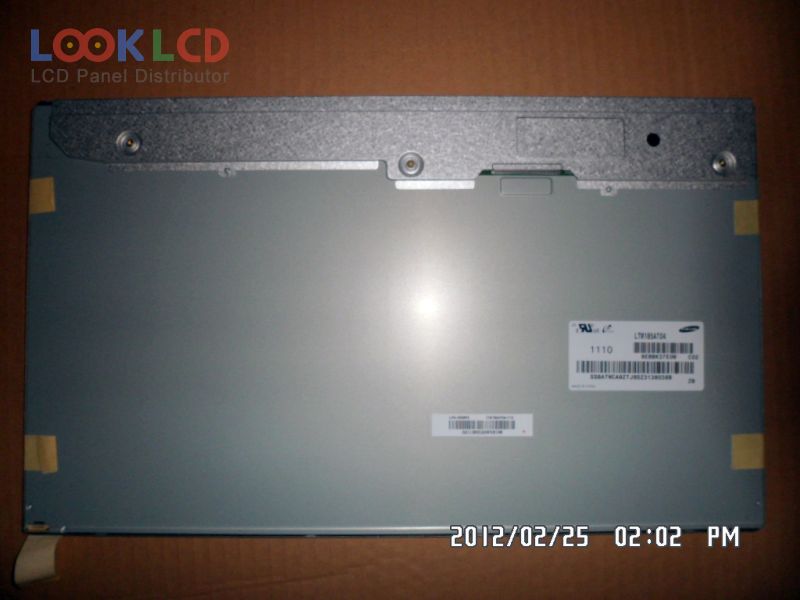

| PartNumber | LTM185AT04 |
| Marca | Samsung |
| mărimea | 18.5 |
| Aplicație | DMPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTM185AT04 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 18.5 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 409.8×230.4 mm |
| contur | 430.37×254.6×12.3 mm |
| suprafaţă | Antiglare (Haze 25%), Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193172% |
| timp de raspuns | 5 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 12S4PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| tensiune de intrare | 5.0V (Typ.) |
| aplicarea | DMPC |
| LM185TT2A | PANDA | 18.5 | 1366×768 |
| LTM181E3-P01 | Samsung | 18.1 | 1280×1024 |
| LTM181E4-L01 | Samsung | 18.1 | 1280×1024 |
| LTM184HL01 | Samsung | 18.4 | 1920×1080 |
| LTM185AT01 | Samsung | 18.5 | 1366×768 |
| LTM185AT02 | Samsung | 18.5 | 1366×768 |
| LTM185AT04 | Samsung | 18.5 | 1366×768 |
| LTM185AT05 | Samsung | 18.5 | 1366×768 |
| M185BGE-L10 | Innolux | 18.5 | 1366×768 |
| HR215WU1-120 | BOE | 21.5 | 1920×1080 |
| LM185WH2-TLA1 | LG Display | 18.5 | 1366×768 |
| LTM190M2-L31 | Samsung | 19.0 | 1440×900 |
| LTM220MT12 | Samsung | 22.0 | 1680×1050 |
| M185BGE-L10 | Innolux | 18.5 | 1366×768 |
| M220EW01 V0 | AUO | 22.0 | 1680×1050 |
| M220EW01 V2 | AUO | 22.0 | 1680×1050 |
| M236HGJ-L11 | Innolux | 23.6 | 1920×1080 |
| P270MWN1 R0 | IVO | 27.0 | 1920×1080 |
| TM150XG-22L01A | SANYO | 15.0 | 1024×768 |
