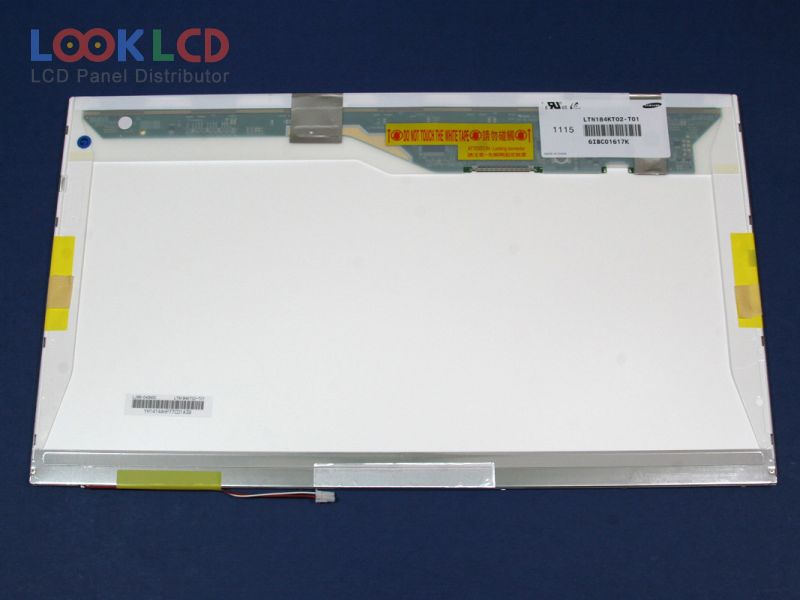

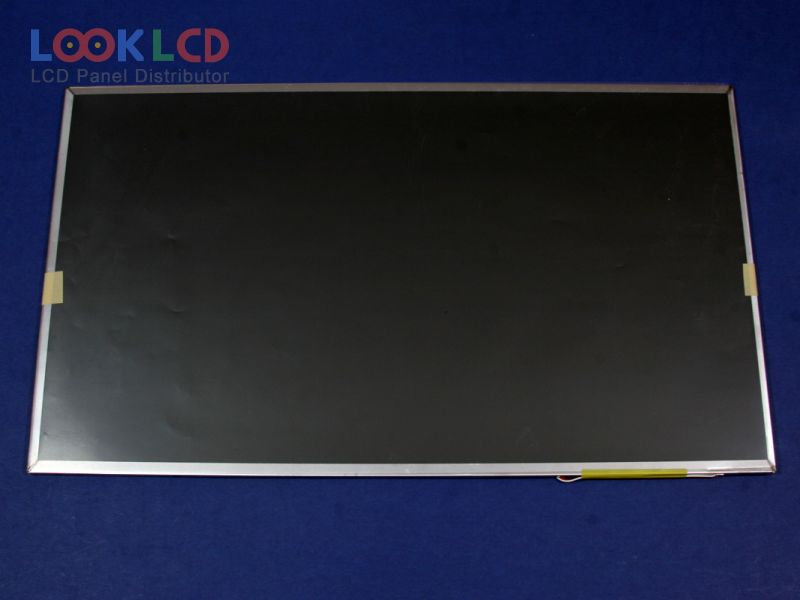

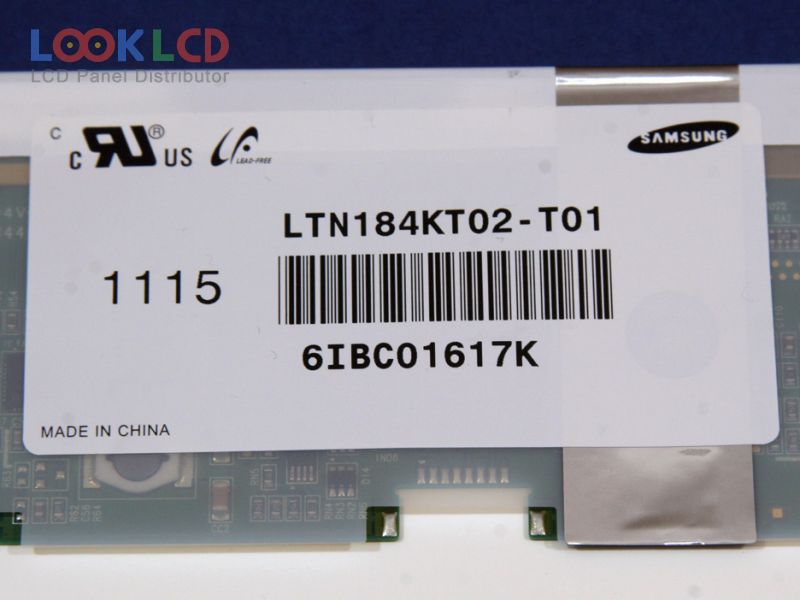

| PartNumber | LTN184KT02-T01 |
| Marca | Samsung |
| mărimea | 18.4 |
| Aplicație | NBPC |
| Rezoluţie | 1680×945 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTN184KT02-T01 4 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 18.4 inch |
| rezoluţie | 1680(RGB)×945 , HD+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 408.24×229.635 mm |
| contur | 422.5×246×6.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| CLAA184FP01 | CPT | 18.4 | 1920×1080 |
| LTN184KT01-101 | Samsung | 18.4 | 1680×945 |
| LTN184KT01-A01 | Samsung | 18.4 | 1680×945 |
| LTN184KT01-F01 | Samsung | 18.4 | 1680×945 |
| LTN184KT01-J01 | Samsung | 18.4 | 1680×945 |
| LTN184KT01-S02 | Samsung | 18.4 | 1680×945 |
| LTN184KT02-T01 | Samsung | 18.4 | 1680×945 |
| N184H3-L02 | Innolux | 18.4 | 1920×1080 |
| N184H4-L01 | Innolux | 18.4 | 1920×1080 |
| B121EW03 V9 | AUO | 12.1 | 1280×800 |
| B133EW01 V3 | AUO | 13.3 | 1280×800 |
| IAQX10N | IDTech | 15.0 | 2048×1536 |
| LP141WX3-TLA4 | LG Display | 14.1 | 1280×800 |
| LP156WHU-TLAA | LG Display | 15.6 | 1366×768 |
| LTD111EXDA | TOSHIBA | 11.1 | 1366×768 |
| LTN121W1-L02 | Samsung | 12.1 | 1280×800 |
| LTN140AT19-201 | Samsung | 14.0 | 1366×768 |
| LTN141AT02-301 | Samsung | 14.1 | 1280×800 |
| LTN154P1-L03 | Samsung | 15.4 | 1680×1050 |
