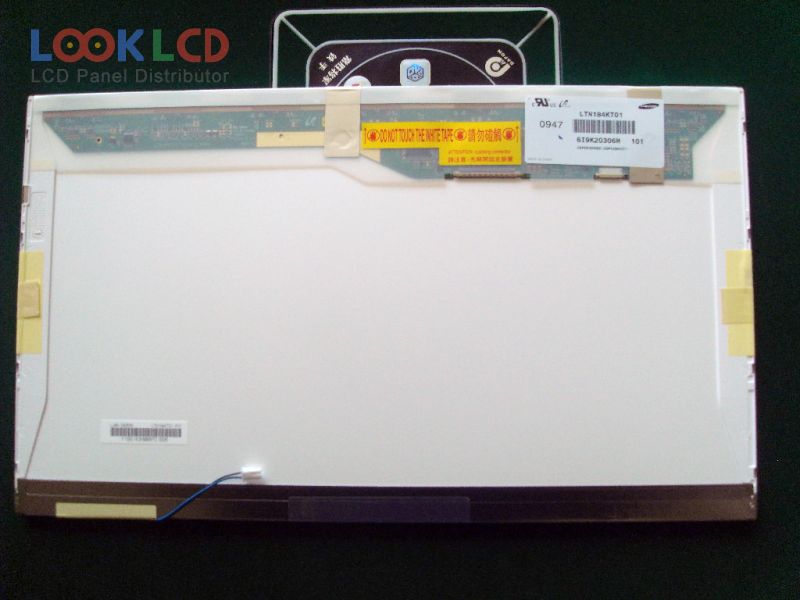

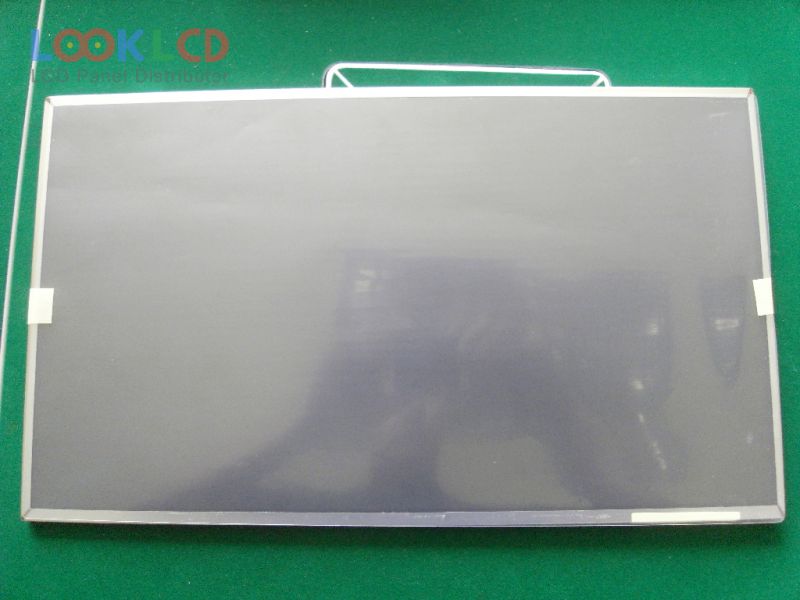

| PartNumber | LTN184KT01-101 |
| Marca | Samsung |
| mărimea | 18.4 |
| Aplicație | NBPC |
| Rezoluţie | 1680×945 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SAMSUNG |
| model de panou | LTN184KT01-101 4 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 18.4 inch |
| rezoluţie | 1680(RGB)×945 , HD+ |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 408.24×229.635 mm |
| contur | 422.5×246×6.5 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (2 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| LTN184KT01-101 | Samsung | 18.4 | 1680×945 |
| LTN184KT01-A01 | Samsung | 18.4 | 1680×945 |
| LTN184KT01-F01 | Samsung | 18.4 | 1680×945 |
| LTN184KT01-J01 | Samsung | 18.4 | 1680×945 |
| LTN184KT01-S02 | Samsung | 18.4 | 1680×945 |
| LTN184KT02-T01 | Samsung | 18.4 | 1680×945 |
| N184H4-L04 | Innolux | 18.4 | 1920×1080 |
| N184H6-L02 | Innolux | 18.4 | 1920×1080 |
| LP141WP1-TLC1 | LG Display | 14.1 | 1440×900 |
| LP156WH3-TLA1 | LG Display | 15.6 | 1366×768 |
| LP173WD1-TLN4 | LG Display | 17.3 | 1600×900 |
| LQ106K1LA01B | SHARP | 10.6 | 1280×768 |
| LQ133T1JW19 | SHARP | 13.3 | 2560×1440 |
| LT121SU-121 | Samsung | 12.1 | 800×600 |
| LTD089EXWS | TOSHIBA | 8.9 | 1280×768 |
| LTD121EC5V | TOSHIBA | 12.1 | 1024×768 |
| LTN150XG-L04 | Samsung | 15.0 | 1024×768 |
| N116HSE-EJ1 | Innolux | 11.6 | 1920×1080 |
