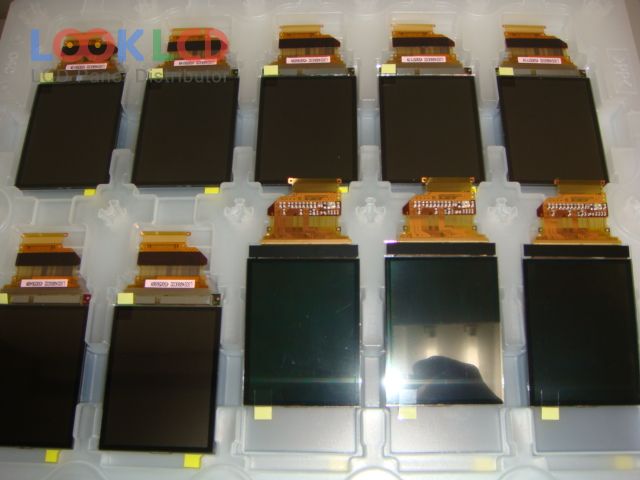

| PartNumber | LS024Q8UC02 |
| Marca | SHARP |
| mărimea | 2.4 |
| Aplicație | MPH |
| Rezoluţie | 240×320 |
| Compoziţie | CELL |
| Luminozitate | 0 |
| CR | 90:1 |
| Culori | 65K |
| Iluminare de fundal | No B/L |
| Interfață | CPU |
| marca panoului | SHARP |
| model de panou | LS024Q8UC02 |
| tip panou | CG-Silicon , CELL |
| dimensiunea panoului | 2.4 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 36.72×48.96 mm |
| contur | 41.7×83.65×1.75 mm |
| suprafaţă | Hard coating |
| transmisivitatea | 8.2% (Typ.)(with Polarizer) |
| Raport de contrast | 90:1 (Typ.)(Transmissive)7:1 (Typ.)(Reflective) |
| culorile afișajului | 65K , CIE193159% |
| timp de raspuns | 60 (Typ.)(Tr+Td) |
| unghi de vedere | 35/35/40/30 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| interfață de semnal | CPU, 36 pins |
| tensiune de intrare | 2.85V (Typ.) |
| aplicarea | MPH |
