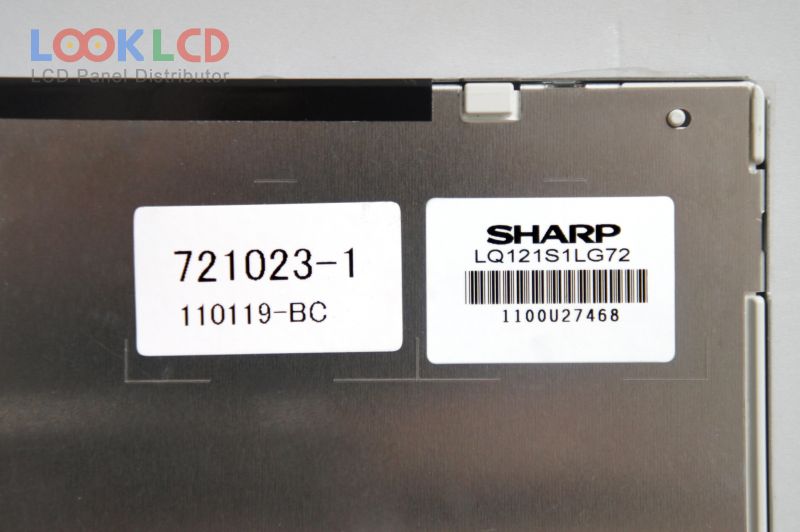

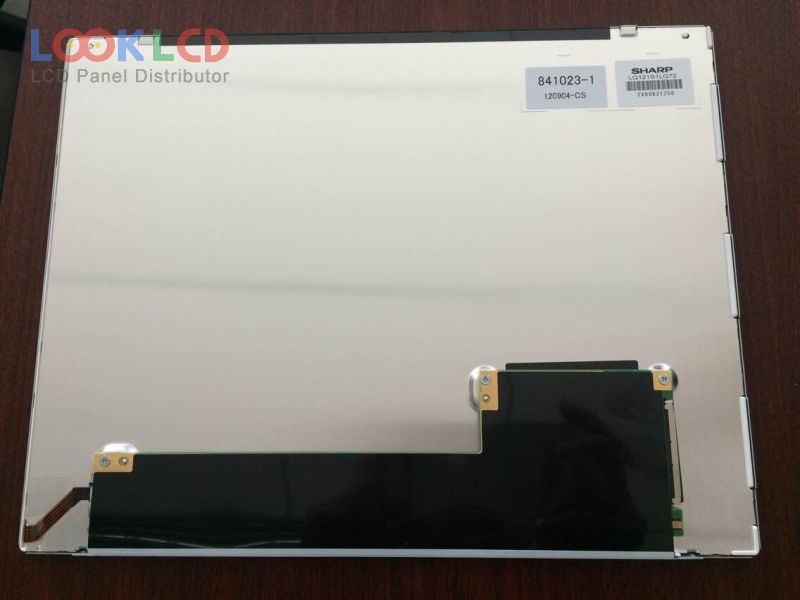

| PartNumber | LQ121S1LG72 |
| Marca | SHARP |
| mărimea | 12.1 |
| Aplicație | GM |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 900:1 |
| Culori | 16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SHARP |
| model de panou | LQ121S1LG72 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 246×184.5 mm |
| contur | 265×205×10 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 900:1 (Typ.) |
| culorile afișajului | 16.2M (6-bit + FRC), CIE193176% |
| timp de raspuns | 30 (Typ.)(Tr+Td); 10 (Typ.)(G to G) |
| unghi de vedere | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 8-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | GM |
