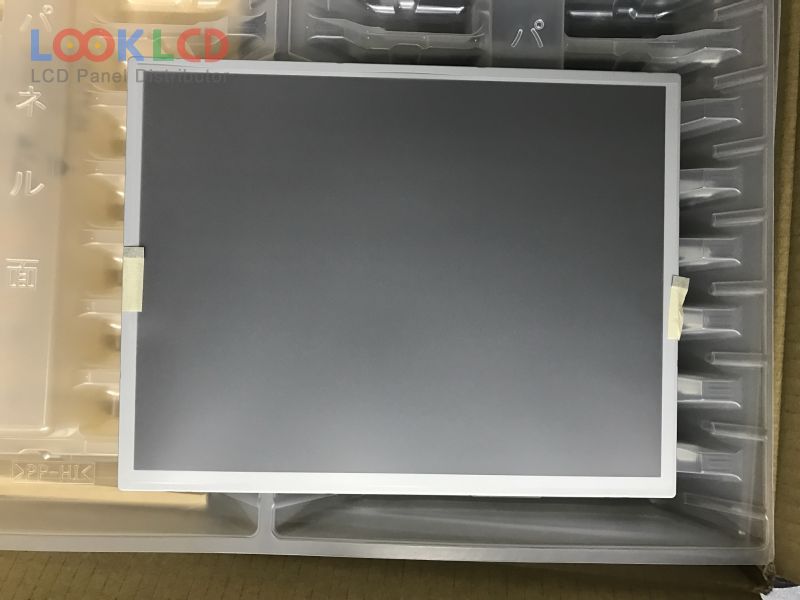

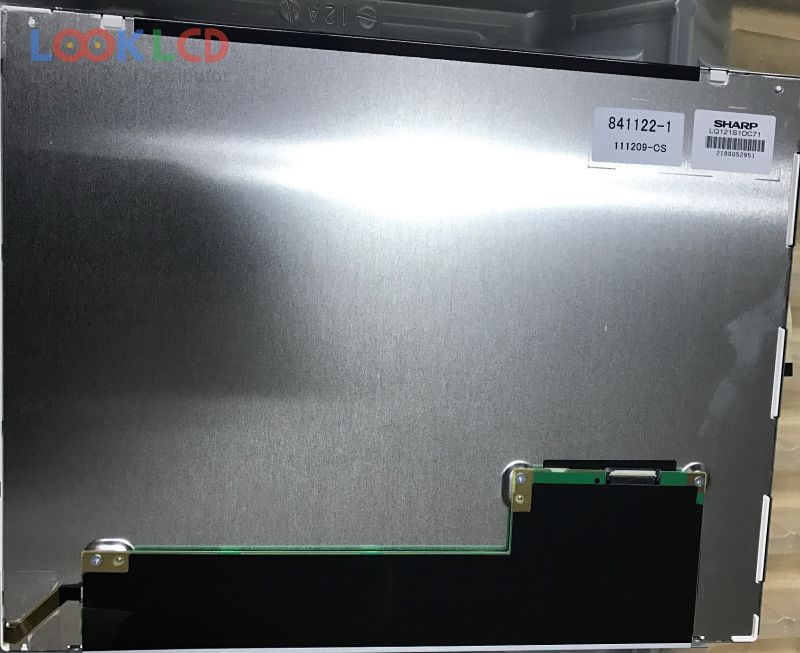

| PartNumber | LQ121S1DC71 |
| Marca | SHARP |
| mărimea | 12.1 |
| Aplicație | IA |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 800 |
| CR | 800:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ121S1DC71 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 246×184.5 mm |
| contur | 265×205×10 mm |
| suprafaţă | Clear, Hard coating (3H) |
| luminozitatea | 800 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 8S3PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
| LQ121S1DG11 | SHARP | 12.1 | 800×600 |
| LQ121S1DG21A | SHARP | 12.1 | 800×600 |
| LQ121S1DG43 | SHARP | 12.1 | 800×600 |
| LQ121S1LG45 | SHARP | 12.1 | 800×600 |
| LQ121S1LG51 | SHARP | 12.1 | 800×600 |
| LQ121S1LG61 | SHARP | 12.1 | 800×600 |
| LQ121S1LG81 | SHARP | 12.1 | 800×600 |
| LQ121S1LH03 | SHARP | 12.1 | 800×600 |
| LQ121X1LH83 | SHARP | 12.1 | 1024×768 |
| LQ121X3LH01 | SHARP | 12.1 | 1024×768 |
| EL320.240.36 AG | Lumineq | 5.7 | 320×240 |
| G104VN01 V1 | AUO | 10.4 | 640×480 |
| G150XG01 V4 | AUO | 15.0 | 1024×768 |
| G150XTN03.1 | AUO | 15.0 | 1024×768 |
| HSD190MEN4-A02 | HannStar | 19.0 | 1280×1024 |
| KCG057QV1DB-G500 | Kyocera | 5.7 | 320×240 |
| LQ121S1DG11 | SHARP | 12.1 | 800×600 |
| LQ121S1DG61 | SHARP | 12.1 | 800×600 |
| OEL9M0073-Y-E | Other | 1.0 | 128×64 |
| TM100SV-A02-01 | SANYO | 10.0 | 800×600 |
