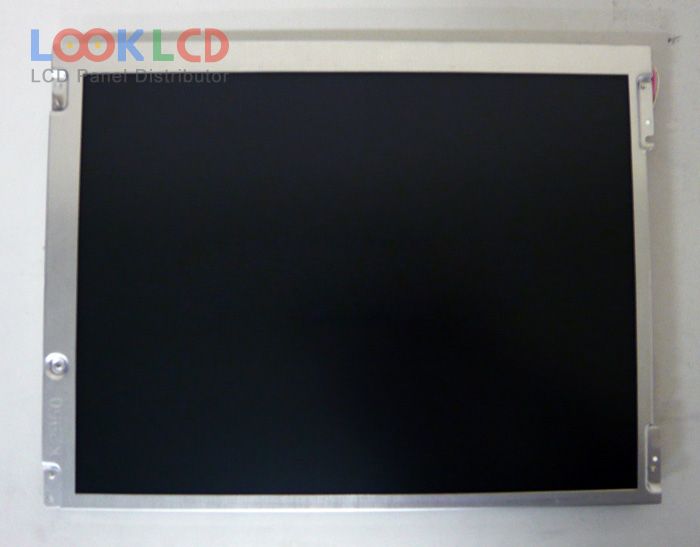

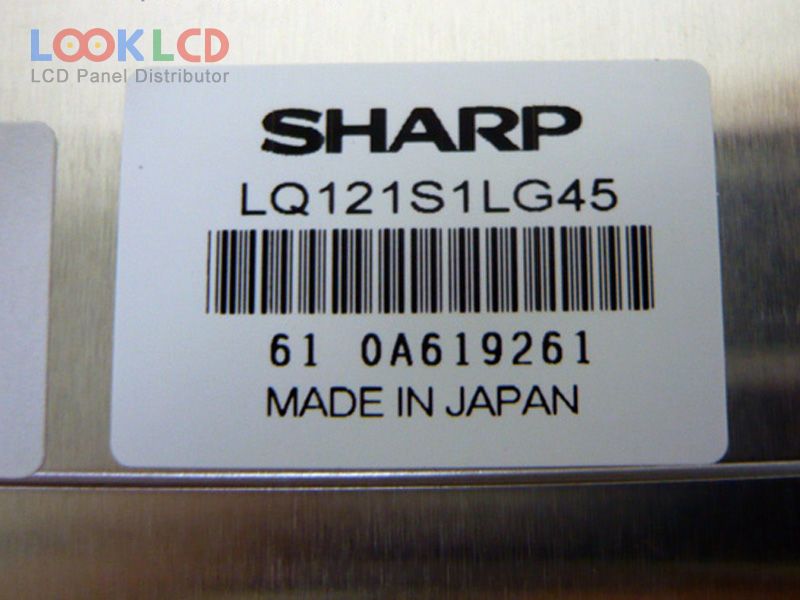

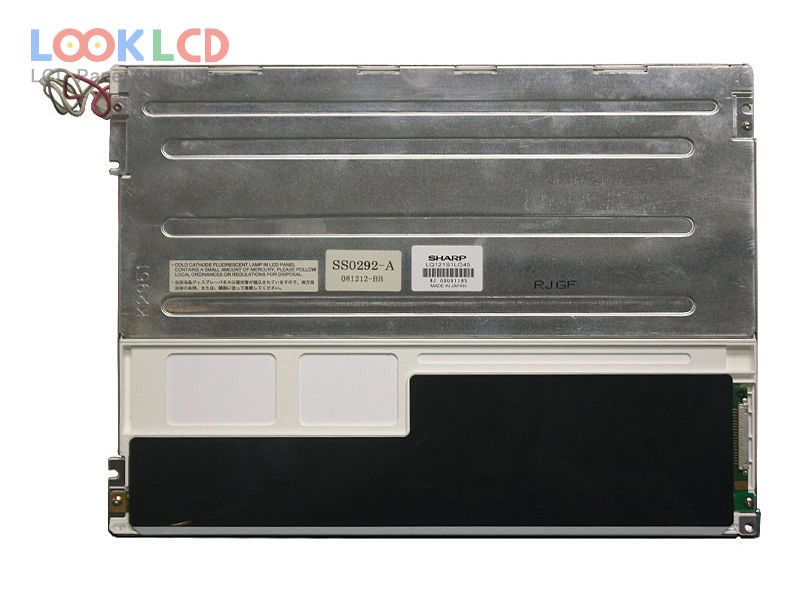

| PartNumber | LQ121S1LG45 |
| Marca | SHARP |
| mărimea | 12.1 |
| Aplicație | GM |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 370 |
| CR | 450:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SHARP |
| model de panou | LQ121S1LG45 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.1 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 246×184.5 mm |
| contur | 276×209×11 mm |
| suprafaţă | Antiglare, Hard coating (3H), Antireflection |
| luminozitatea | 370 cd/m² (Typ.) |
| Raport de contrast | 450:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 15/30 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLWithout Driver |
| interfață de semnal | LVDS (1 ch, 6-bit), 20 pins |
| tensiune de intrare | 3.3/5.0V (Typ.)(VCC) |
| aplicarea | GM |
