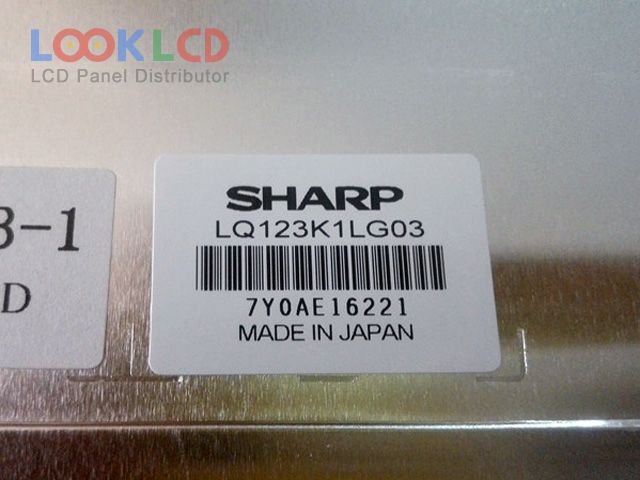

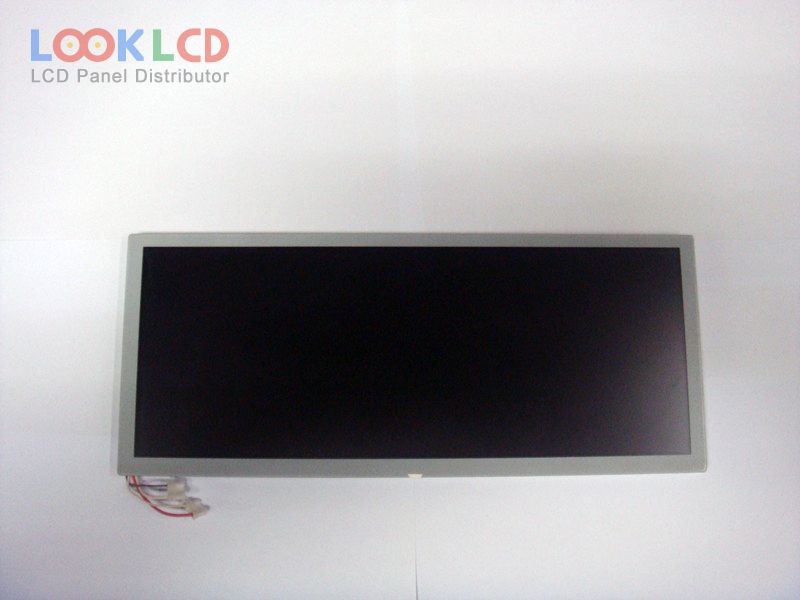

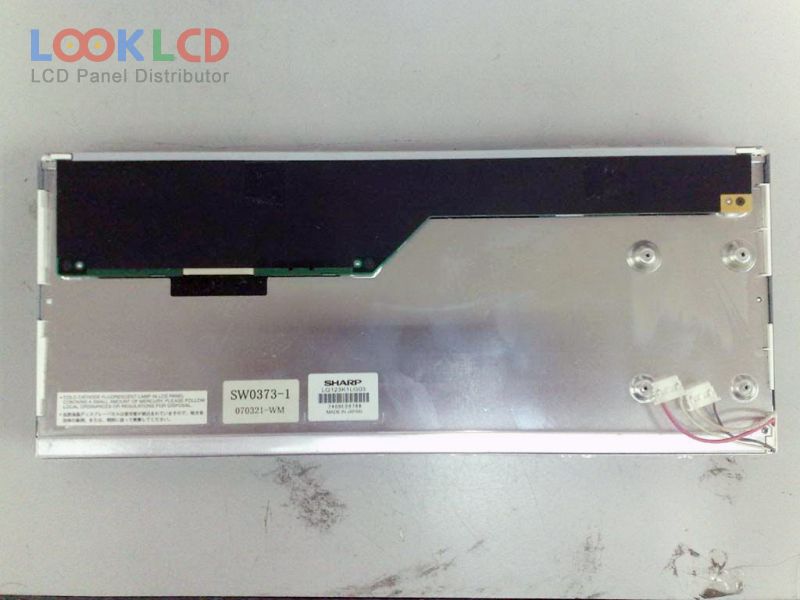

| PartNumber | LQ123K1LG03 |
| Marca | SHARP |
| mărimea | 12.3 |
| Aplicație | GM |
| Rezoluţie | 1280×480 |
| Compoziţie | LCM |
| Luminozitate | 330 |
| CR | 400:1 |
| Culori | 16.2M |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | SHARP |
| model de panou | LQ123K1LG03 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 12.3 inch |
| rezoluţie | 1280(RGB)×480 , DVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 291.84×109.44 mm |
| contur | 312.4×130.4 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 330 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 16.2M (6-bit + FRC), CIE193172% |
| timp de raspuns | 35 (Typ.)(Tr+Td); 10 (Typ.)(G to G) |
| unghi de vedere | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 2 pcsCCFLEmbedded (Inverter) |
| interfață de semnal | LVDS (1 ch, 8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | GM |
