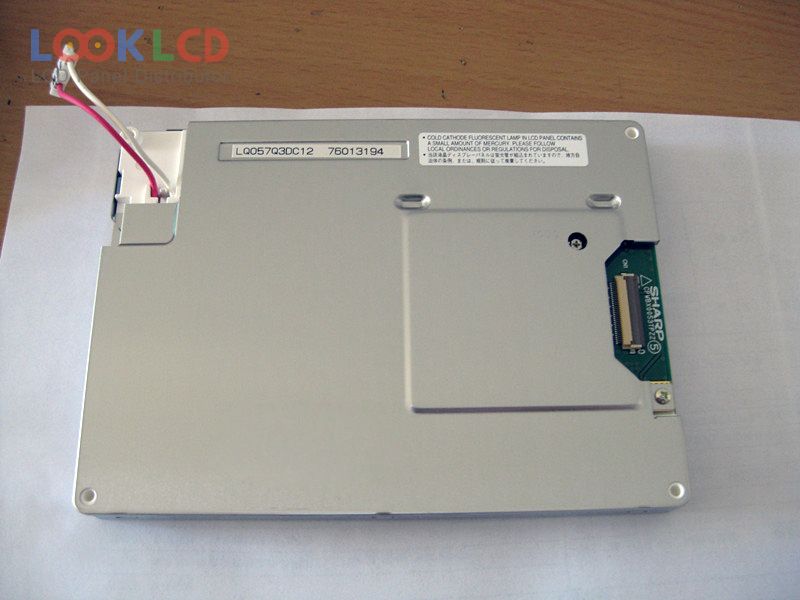

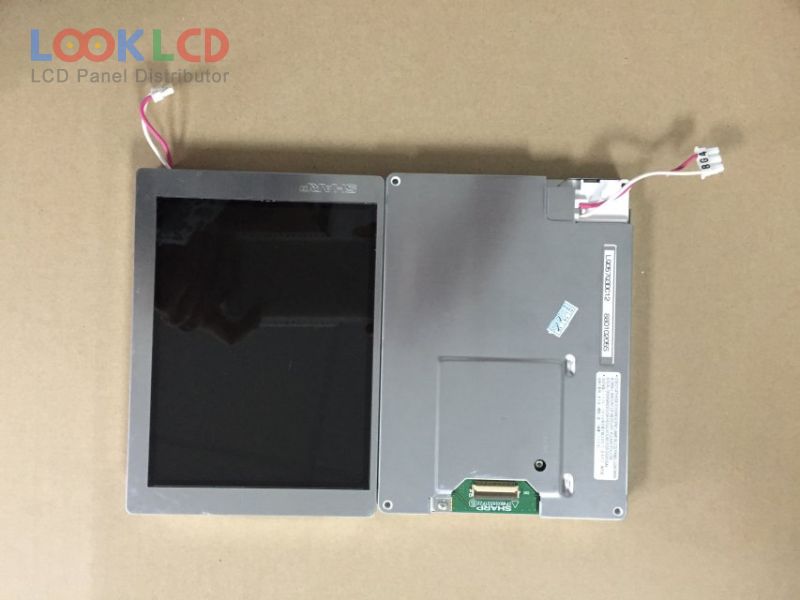

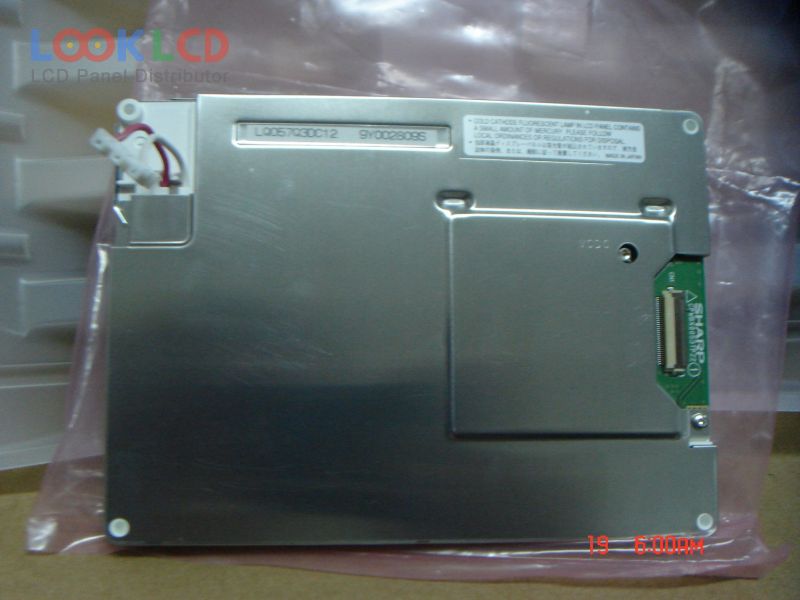

| PartNumber | LQ057Q3DC12 |
| Marca | SHARP |
| mărimea | 5.7 |
| Aplicație | IA |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 350:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ057Q3DC12 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.7 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 115.2×86.4 mm |
| contur | 144×104.6×13.5 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 350:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 8/21 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/65/40 (Typ.)(CR≥5)(L/R/U/D) |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 33 pins |
| tensiune de intrare | 3.3V (Typ.)(VCC) |
| aplicarea | IA |
