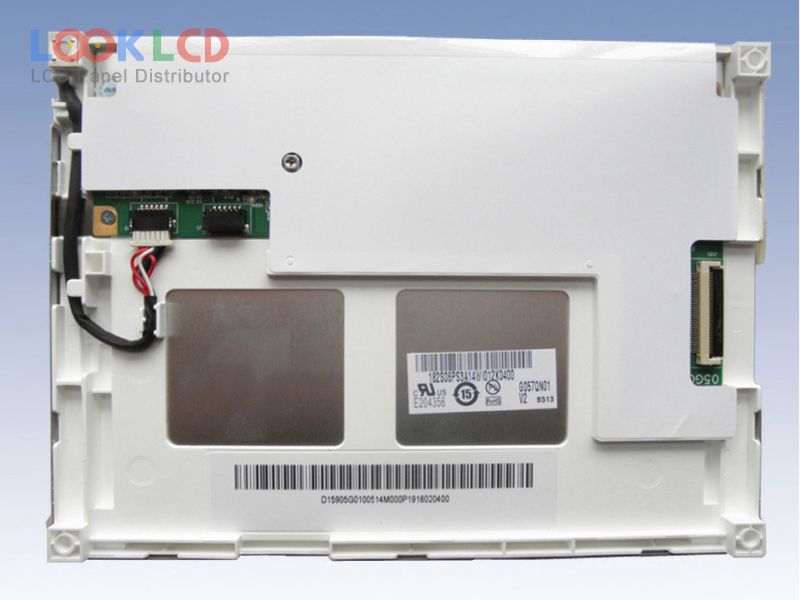

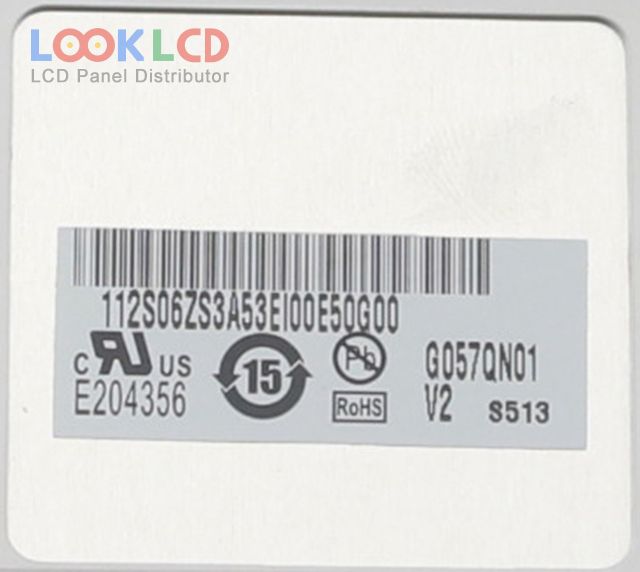

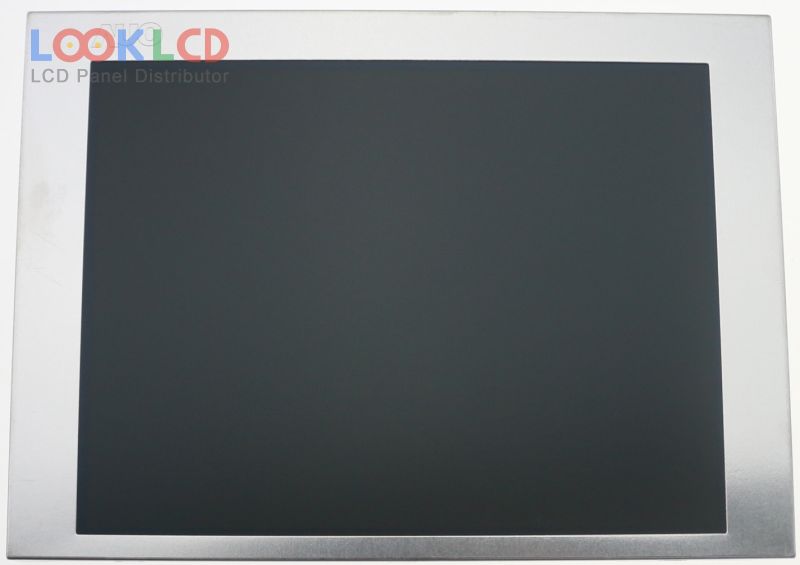

| PartNumber | G057QN01 V2 |
| Marca | AUO |
| mărimea | 5.7 |
| Aplicație | IA |
| Rezoluţie | 320×240 |
| Compoziţie | LCM |
| Luminozitate | 800 |
| CR | 800:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | AUO |
| model de panou | G057QN01 V2 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.7 inch |
| rezoluţie | 320(RGB)×240 , QVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 115.2×86.4 mm |
| contur | 144×104.6×12.8 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 800 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 15/10 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | CMOS (1 ch, 6-bit), 33 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
| AA057VF12 | Mitsubishi | 5.7 | 640×480 |
| AM-640480GJTNQW-TA0H | AMPIRE | 5.7 | 640×480 |
| EL320.240.36 IN AG | Lumineq | 5.7 | 320×240 |
| G057QN01 V0 | AUO | 5.7 | 320×240 |
| G057QN01 V1 | AUO | 5.7 | 320×240 |
| G057QN01 V2 | AUO | 5.7 | 320×240 |
| G057QTN01.1 | AUO | 5.7 | 320×240 |
| KG057QV1CA-G01 | Kyocera | 5.7 | 320×240 |
| KS3224ASTT-FW-X20 | Kyocera | 5.7 | 320×240 |
| SP14Q001-X | KOE | 5.7 | 320×240 |
| B084SN01 V2 | AUO | 8.4 | 800×600 |
| G121I1-L01 | Innolux | 12.1 | 1280×800 |
| G121SN01 V1 | AUO | 12.1 | 800×600 |
| LQ104V1DG72 | SHARP | 10.4 | 640×480 |
| M084GNS1 R1 | IVO | 8.4 | 800×600 |
| NL6448BC26-11 | NLT | 8.4 | 640×480 |
| NL6448BC33-49 | NLT | 10.4 | 640×480 |
| TCG121SVLQAPNN-AN20 | Kyocera | 12.1 | 800×600 |
| TM057KDHG10 | Tianma | 5.7 | 320×240 |
| TX26D05VM1CAA | KOE | 10.4 | 640×480 |
